Immobilizer System, Smart Key System, Starting, Steering Lock And Wireless Door Lock Control

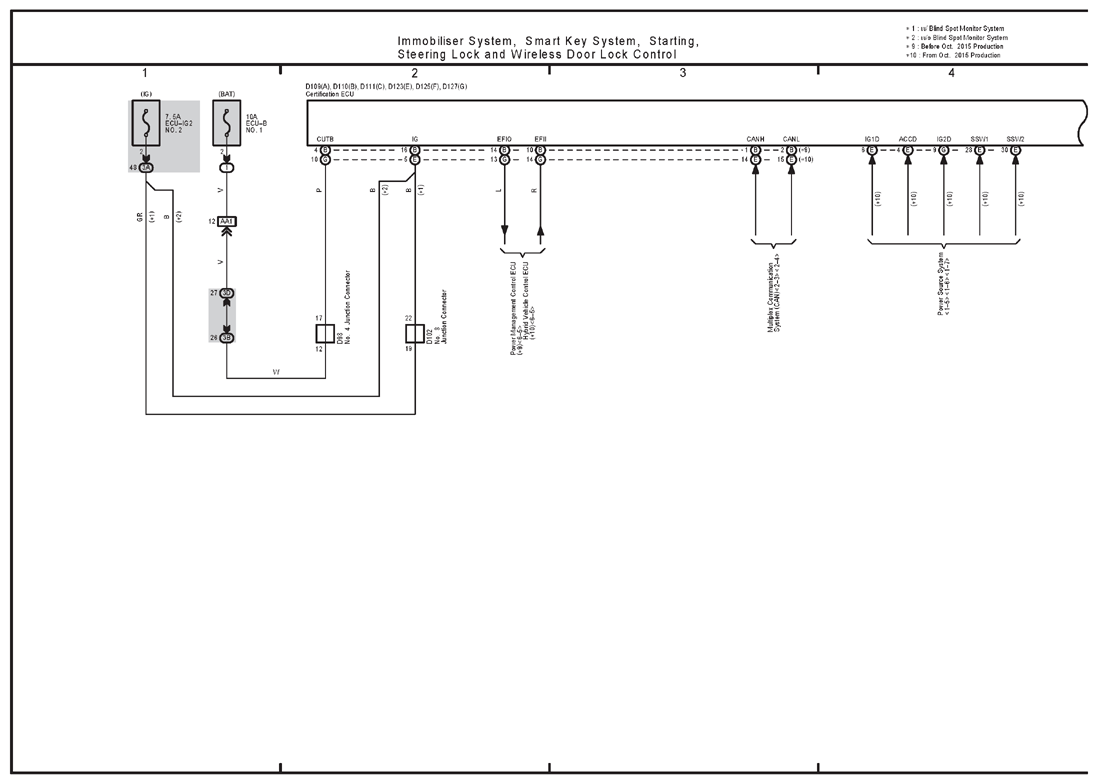

G12230814

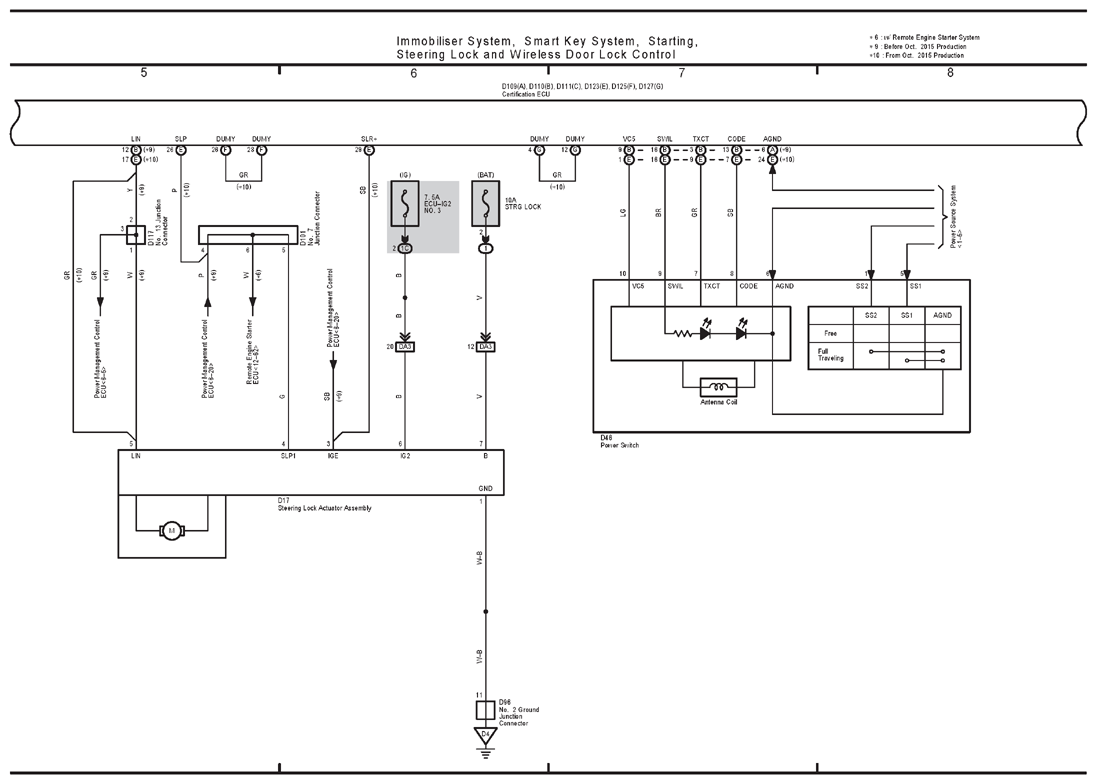

G12230815

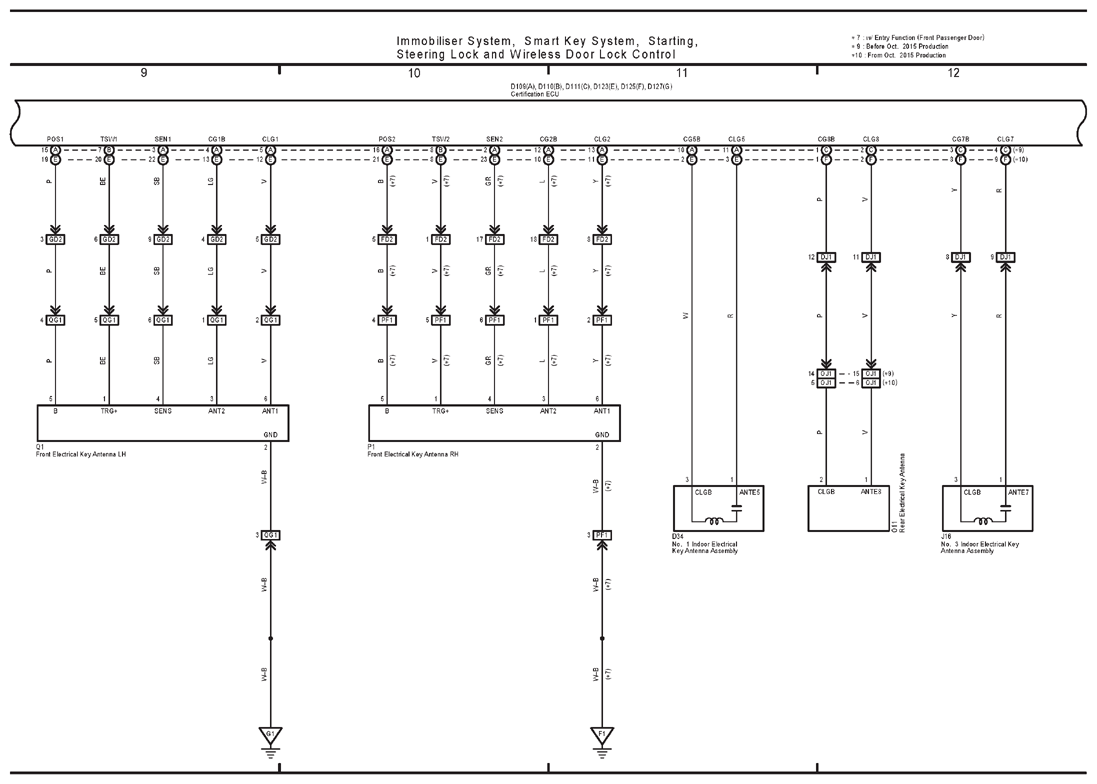

G12230816

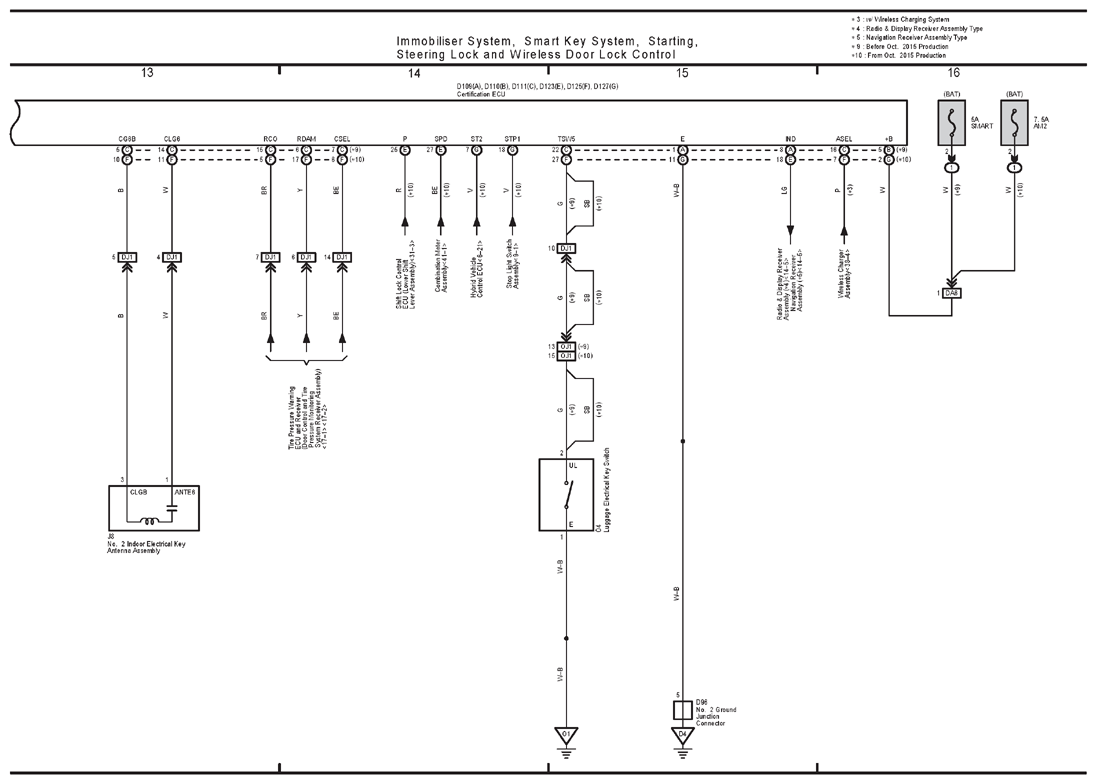

G12230817

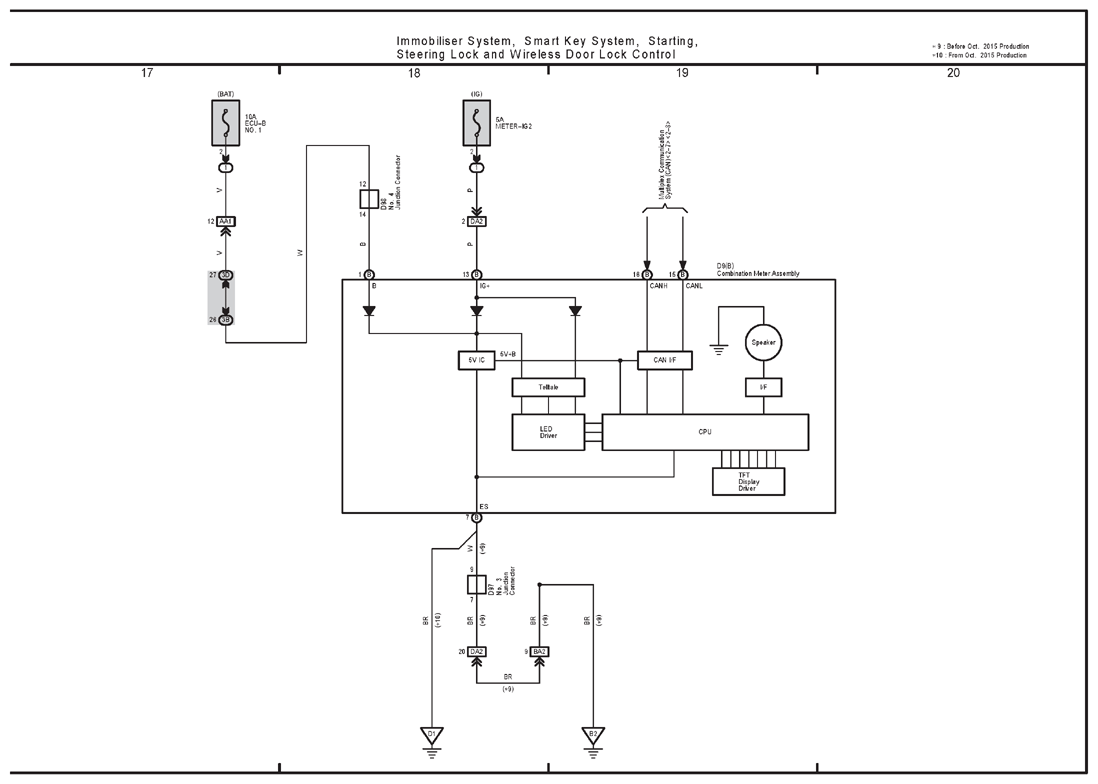

G12230818
