Home >> Toyota >> 2015 >> Avalon Hybrid Limited >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Overall Electrical Wiring Diagram (Hybrid) >> Overall Electrical Wiring Diagram >> Cruise Control Or Dynamic Radar Cruise Control, Lane Departure Alert, Pre-Collision System (From Oct. 2015 Production)

Cruise Control Or Dynamic Radar Cruise Control, Lane Departure Alert, Pre-Collision System (From Oct. 2015 Production)

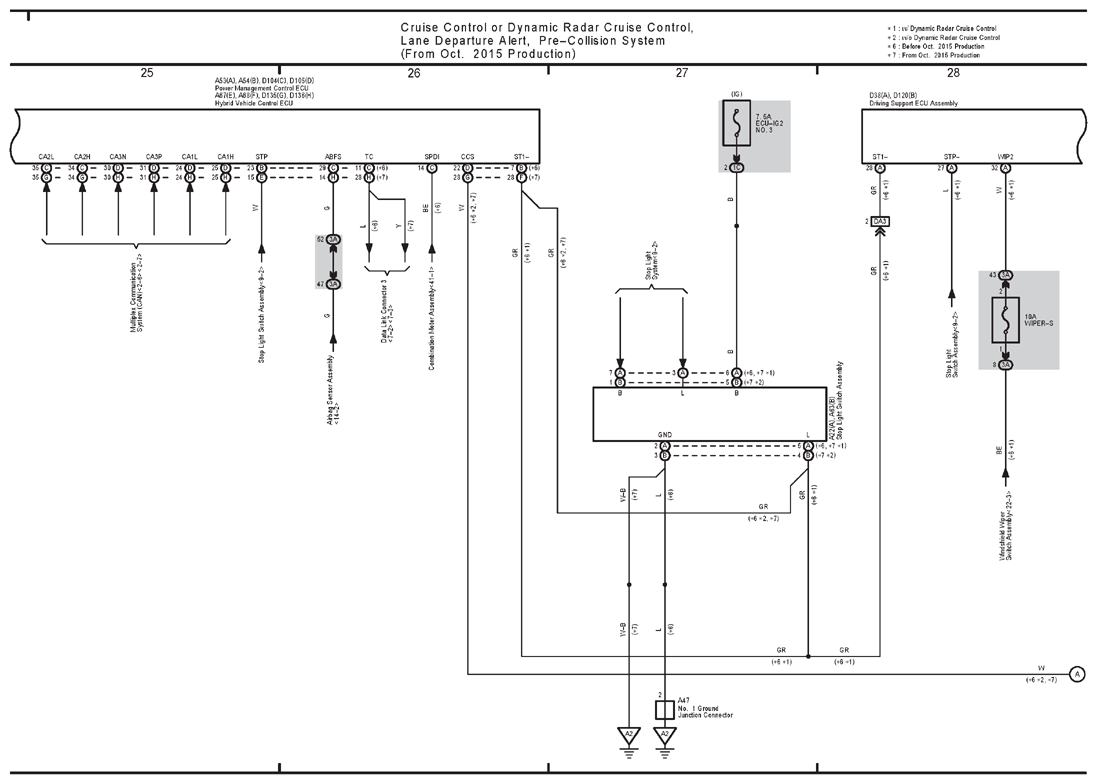

G12230861

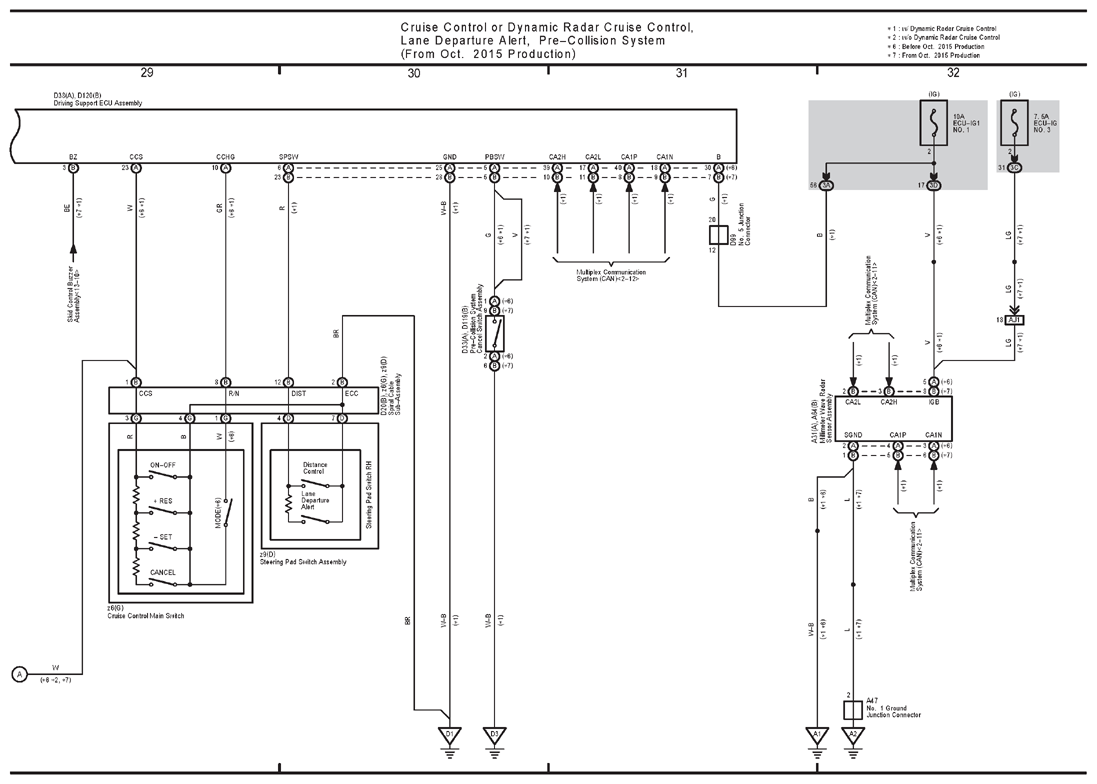

G12230862

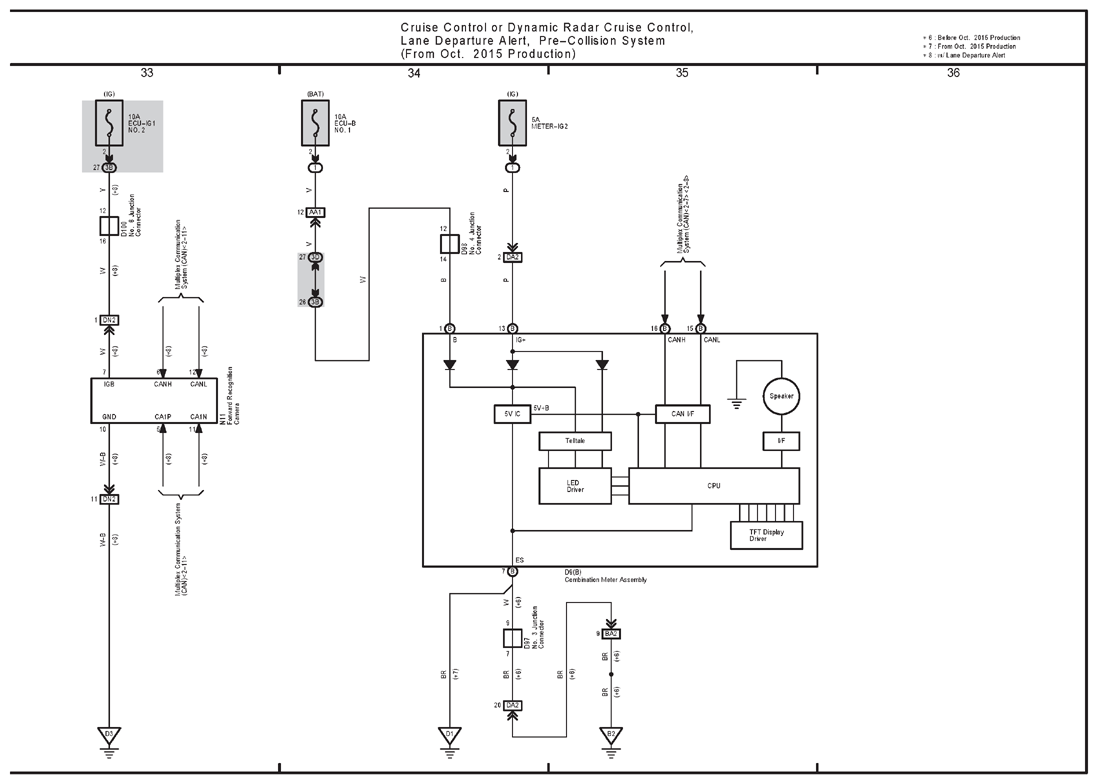

G12230863
