Home >> Toyota >> 2015 >> Avalon Hybrid Limited >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Overall Electrical Wiring Diagram (Hybrid) >> Overall Electrical Wiring Diagram >> Automatic Light Control And Light Auto Turn Off System, Front Fog Light

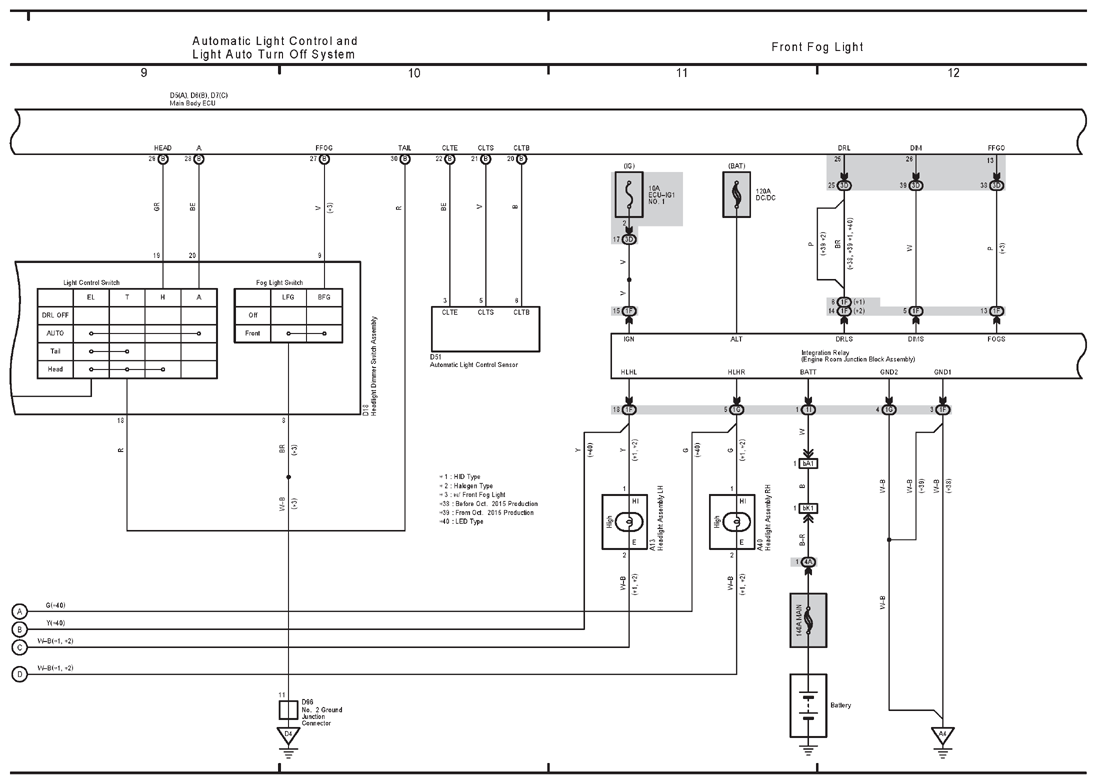

Automatic Light Control And Light Auto Turn Off System, Front Fog Light

G12230771
