OEM Overall Electrical Wiring Diagram (Hybrid)
>>
Overall Electrical Wiring Diagram
>>
Audio System (9 Speaker Or 8 Speaker), Navigation System (9 Speaker) And Parking Assist (Rear View Monitor)

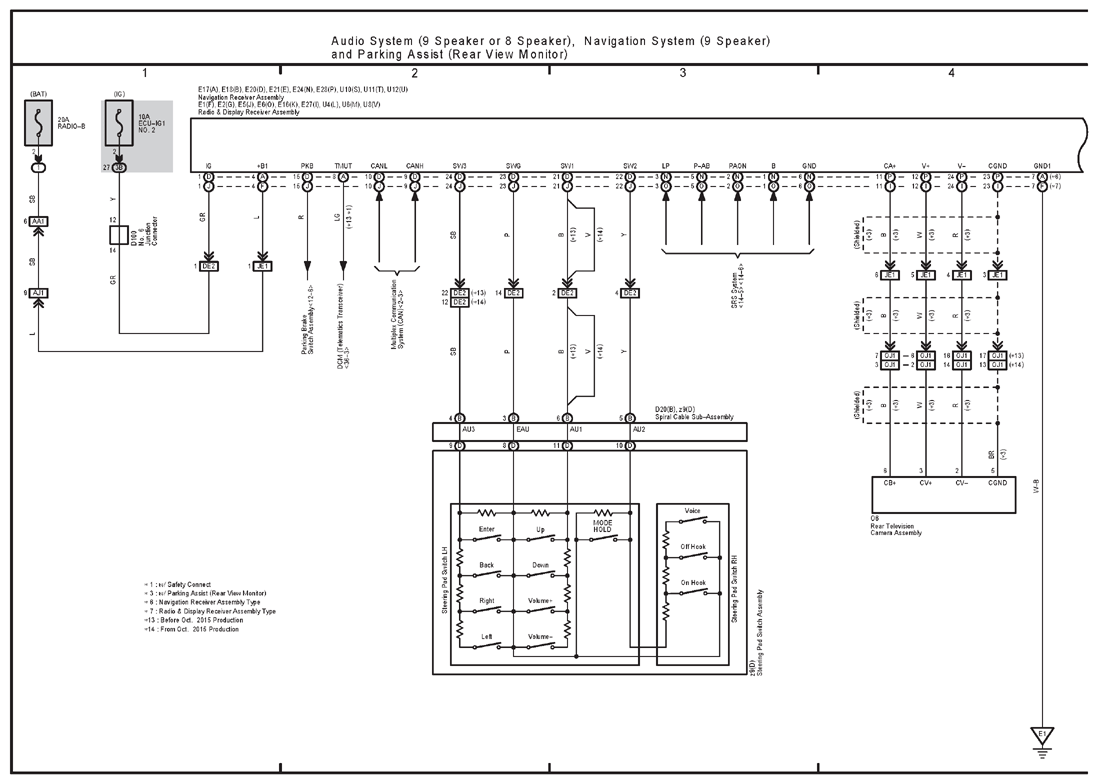

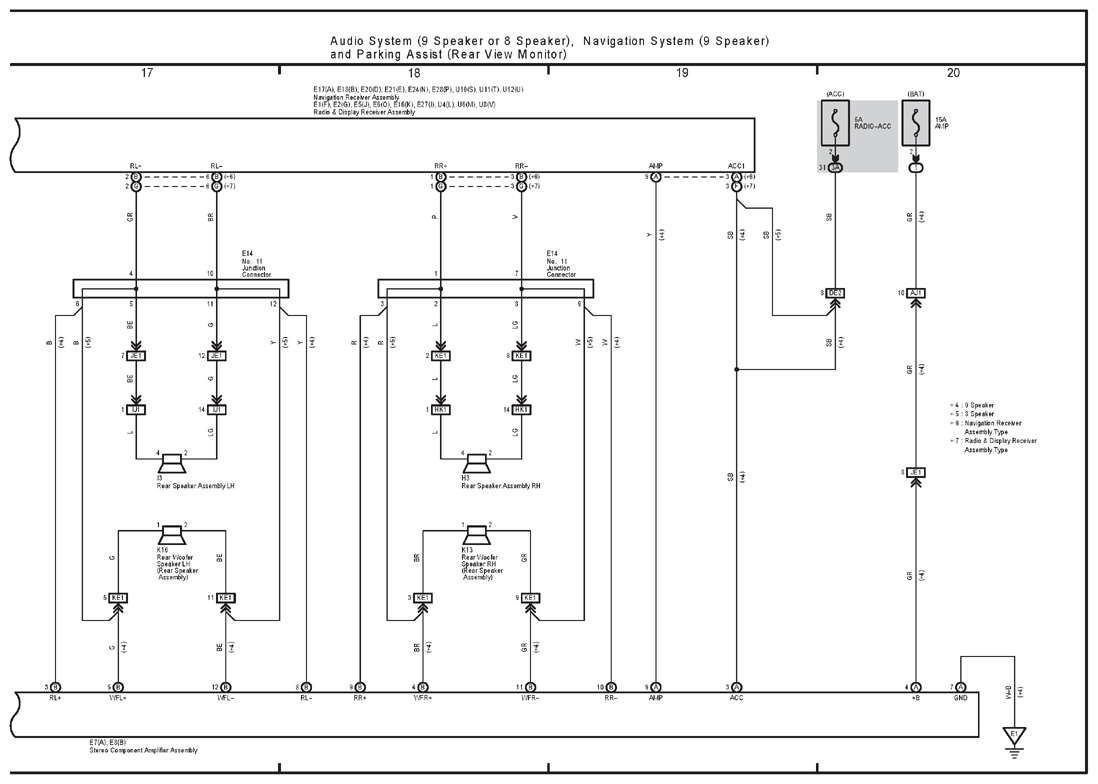

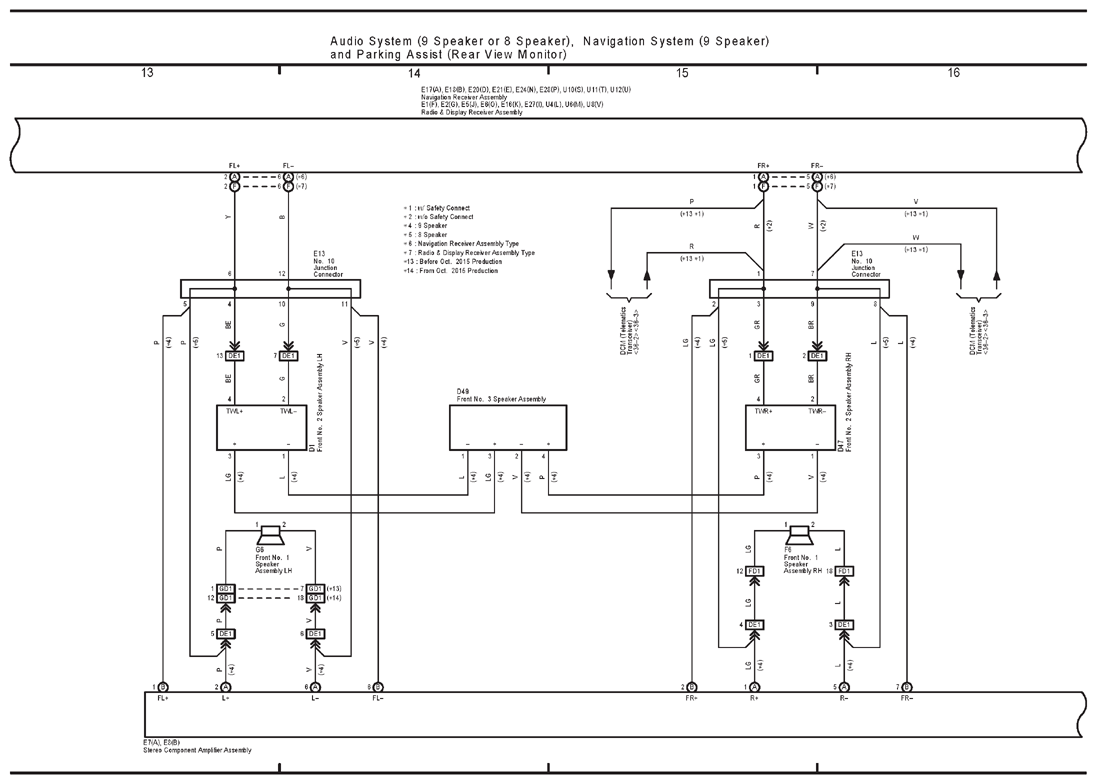

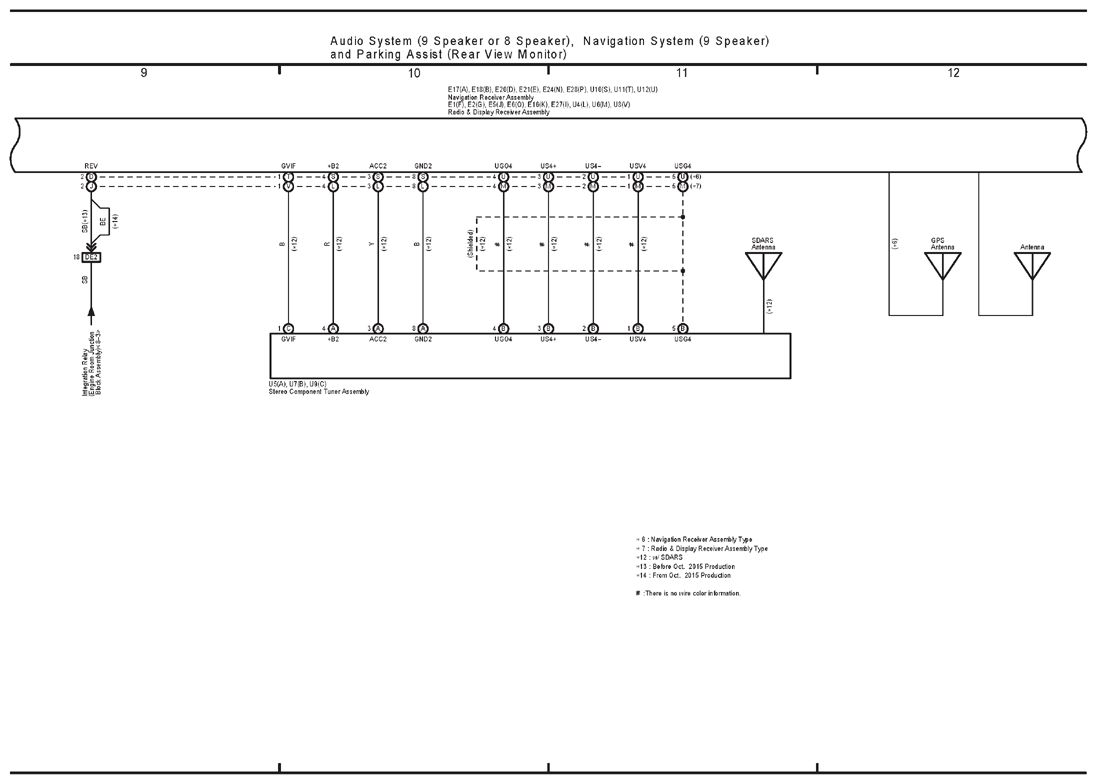

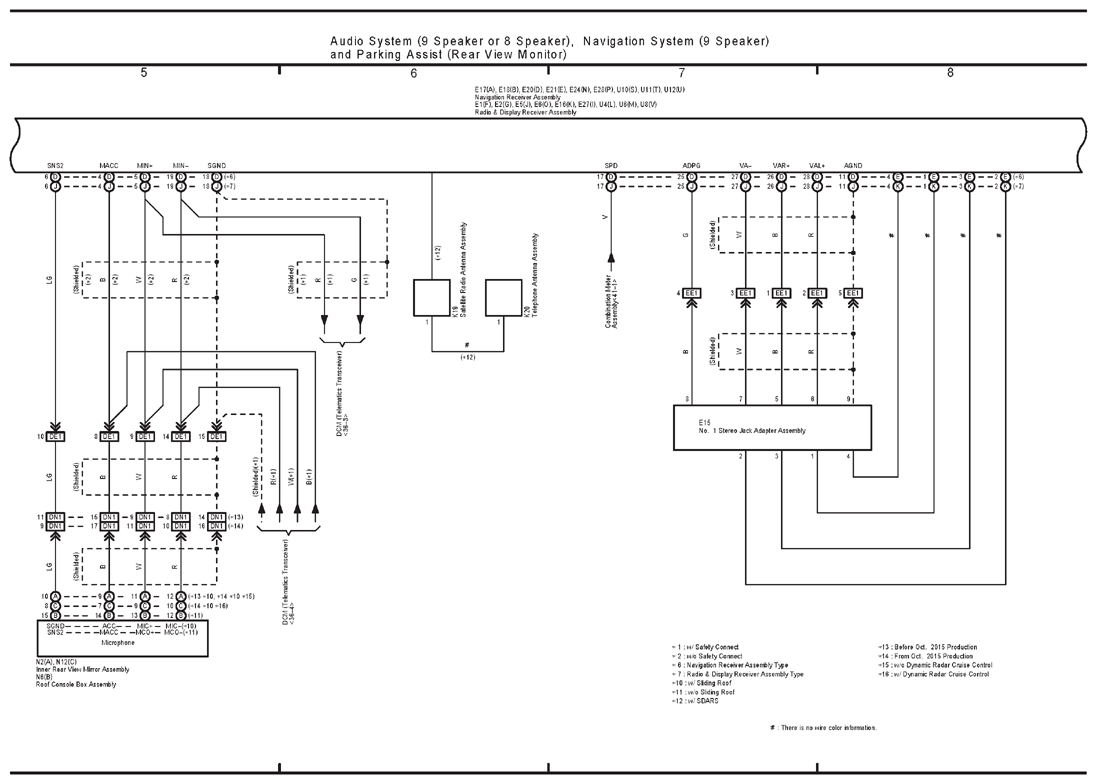

Audio System (9 Speaker Or 8 Speaker), Navigation System (9 Speaker) And Parking Assist (Rear View Monitor)
