Audio System (11 Speaker), Navigation System (11 Speaker) And Parking Assist (Back Guide Monitor)

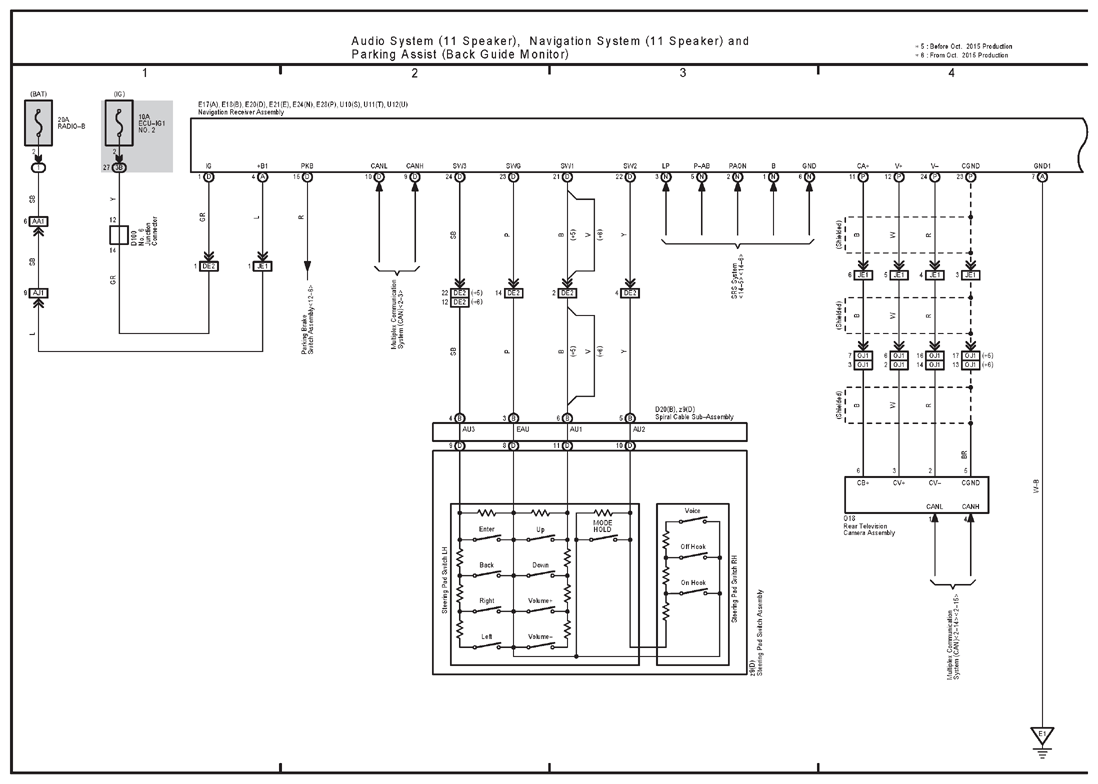

G12230830

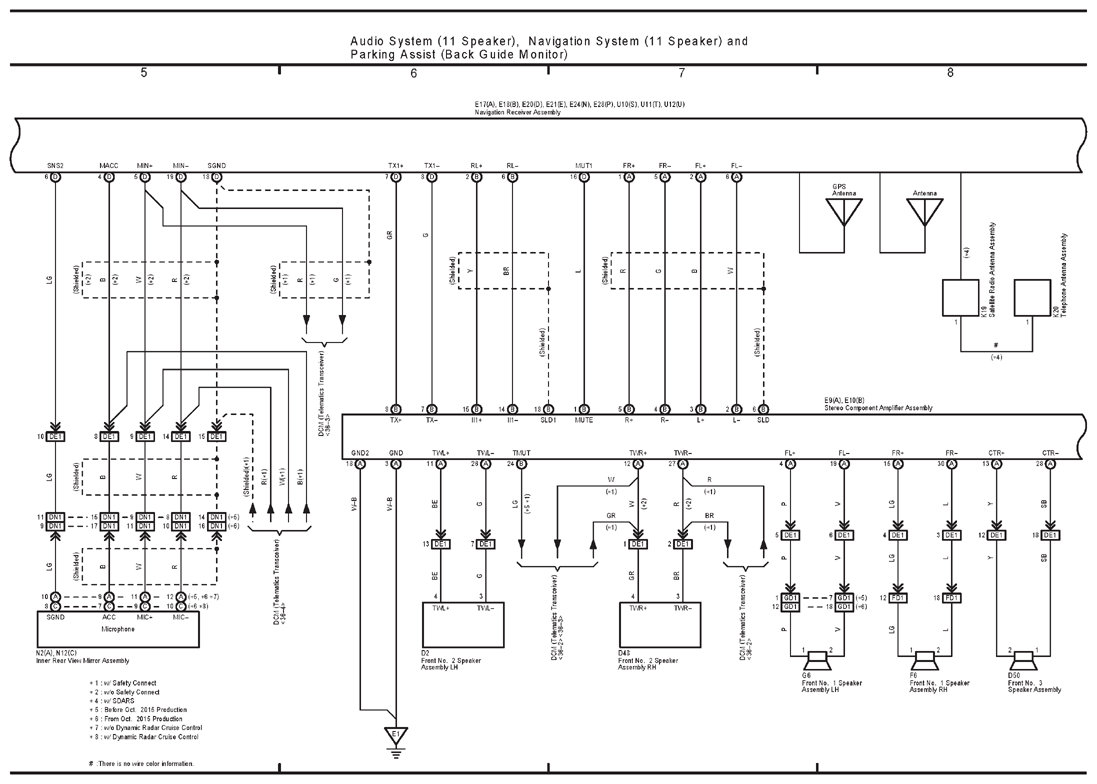

G12230831

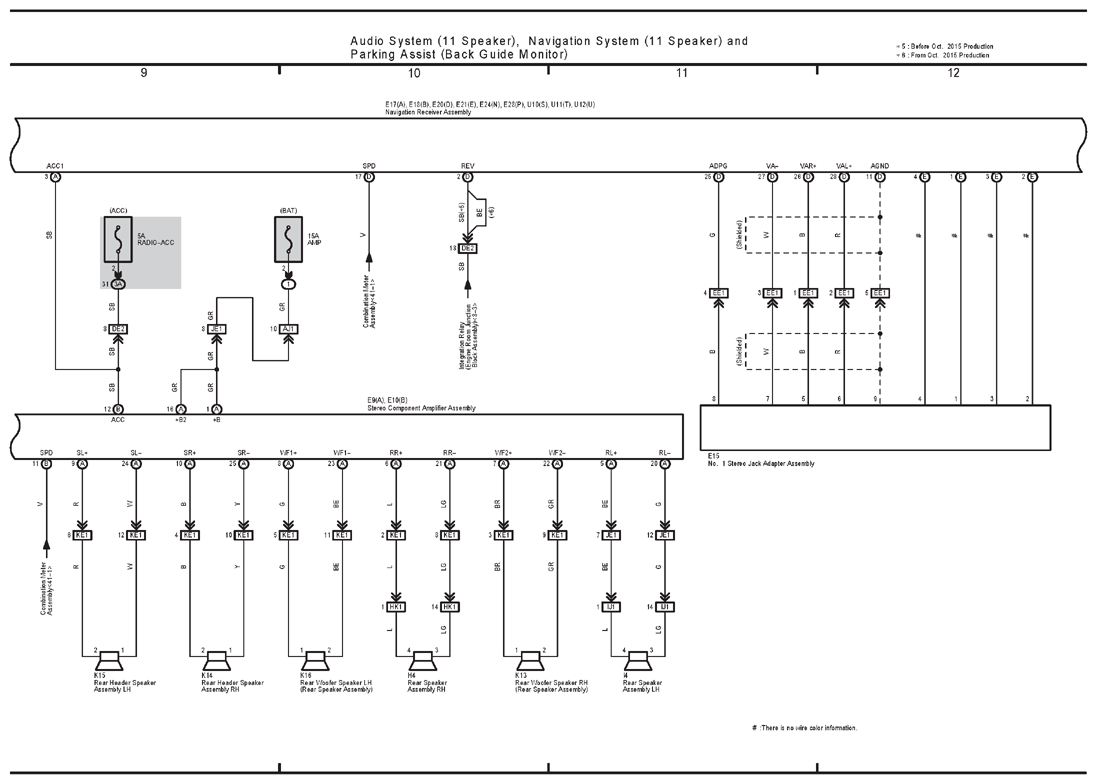

G12230832

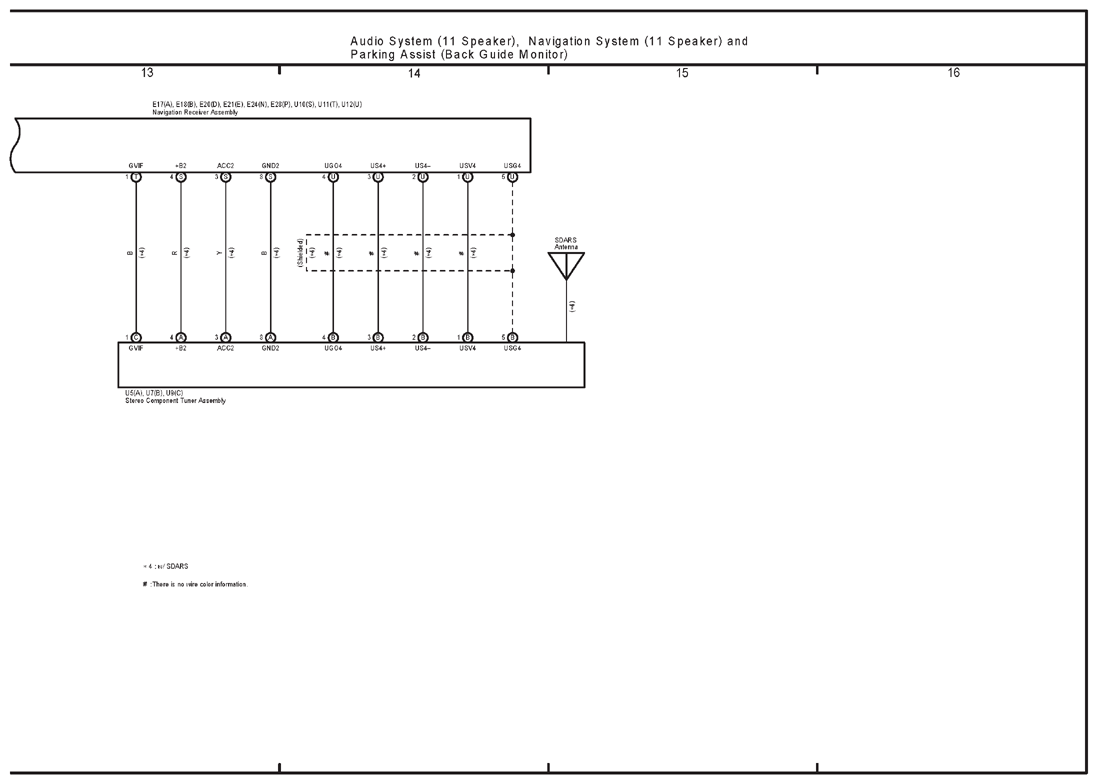

G12230833
