Avalon Hybrid Limited
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Electrical Harness/Wiring Routing (Hybrid)
>>
Wire And Wire In Body
>>
Notes
Wire And Wire In Body: Notes

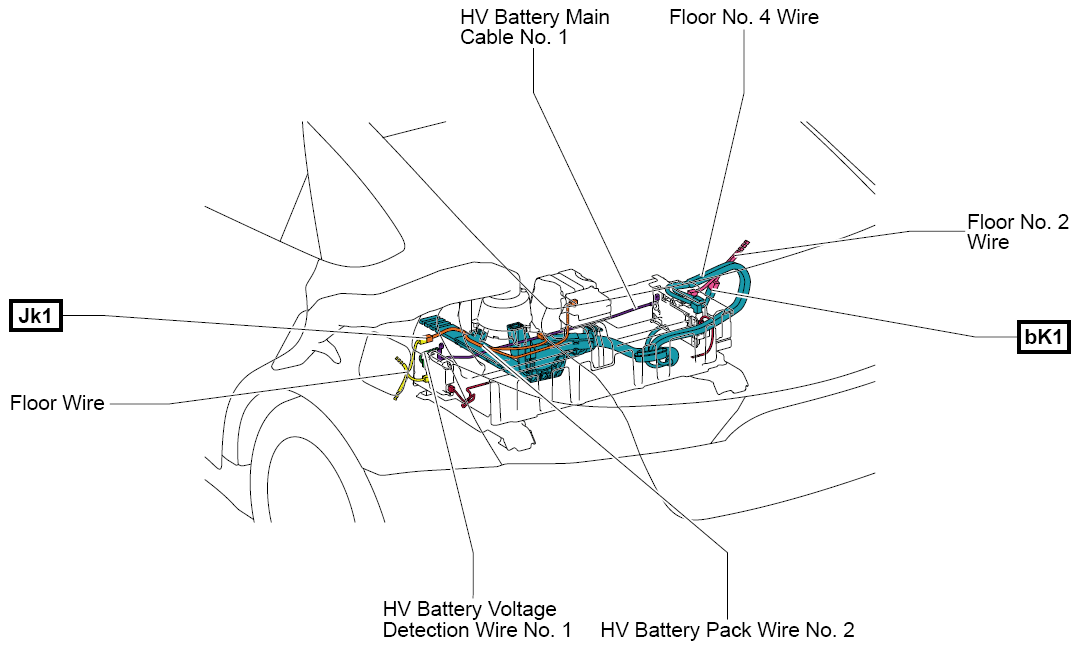

Fig 1: Wire And Wire In Body (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

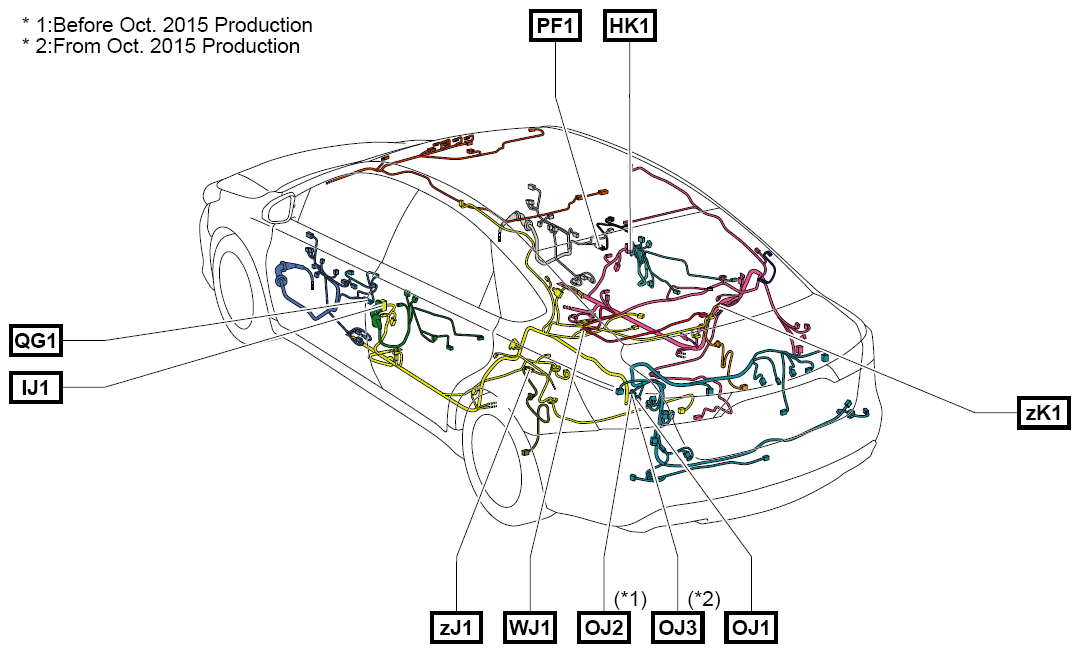

Fig 2: Wire And Wire In Body (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
