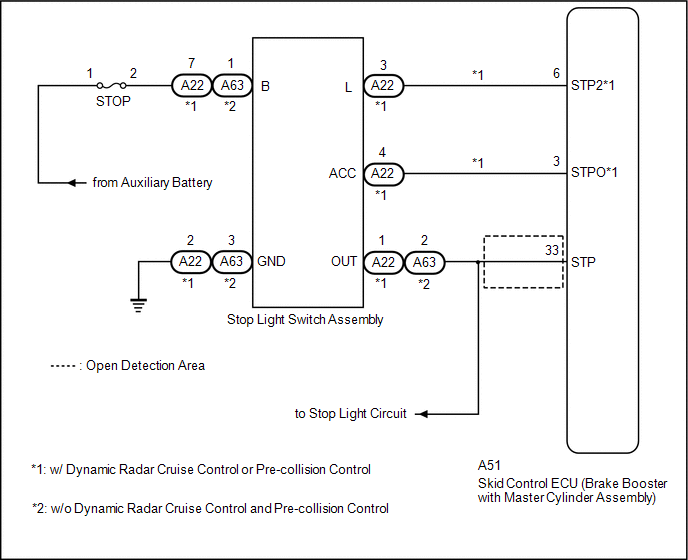

DTC C1249/49: Open in Stop Light Switch Circuit [10/2015 - ]: Wiring Diagram

GTY540242

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
