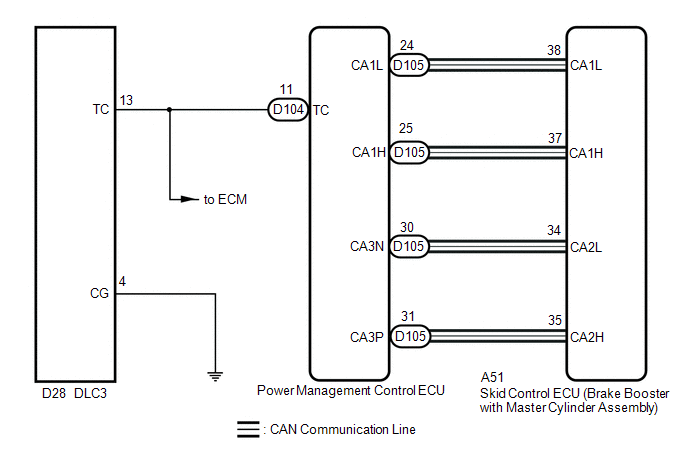

TC and CG Terminal Circuit [10/2014 - 10/2015]: Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

When the warning lights blink without terminals TC and CG connected, a ground short in the wiring of terminal TC of the DLC3 or an internal ground short in one or more ECUs is suspected.
