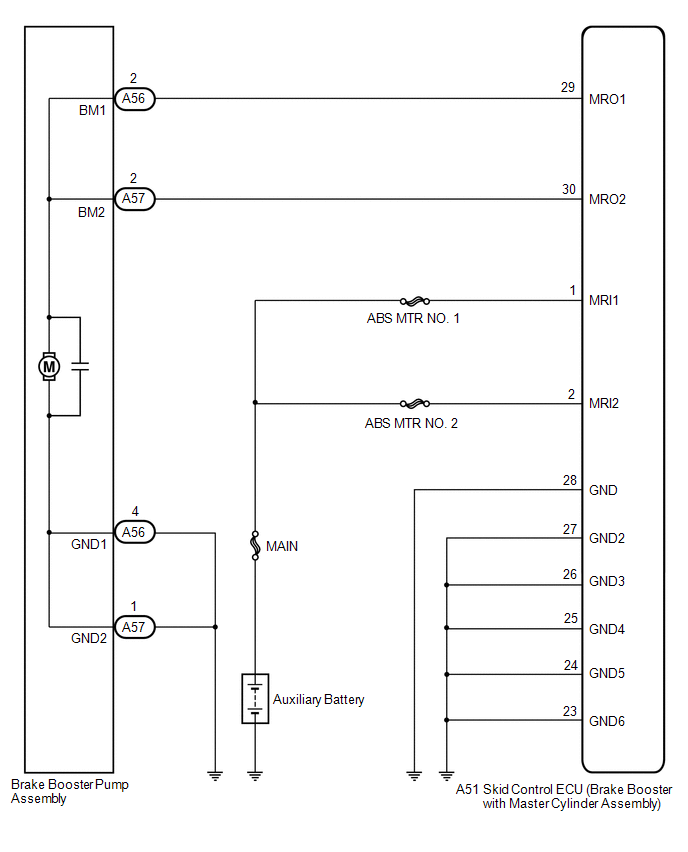

DTC C1252/52: Brake Booster Pump Motor on Time Abnormally Long; DTC C1253/53: Pump Motor Relay Malfunction [10/2014 - ]: Wiring Diagram

GTY607893
