Components [10/2014 - 10/2015]: Illustration

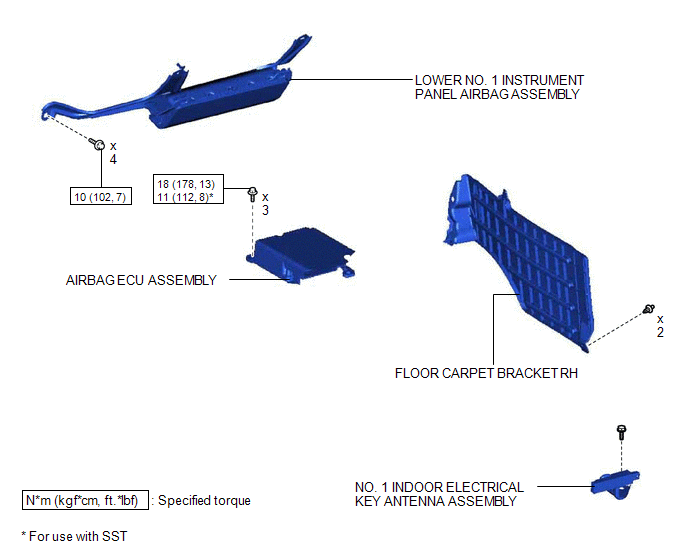

Fig 1: Parking Brake Pedal Replacement Components With Torque Specifications (1 Of 3)
GTY589023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

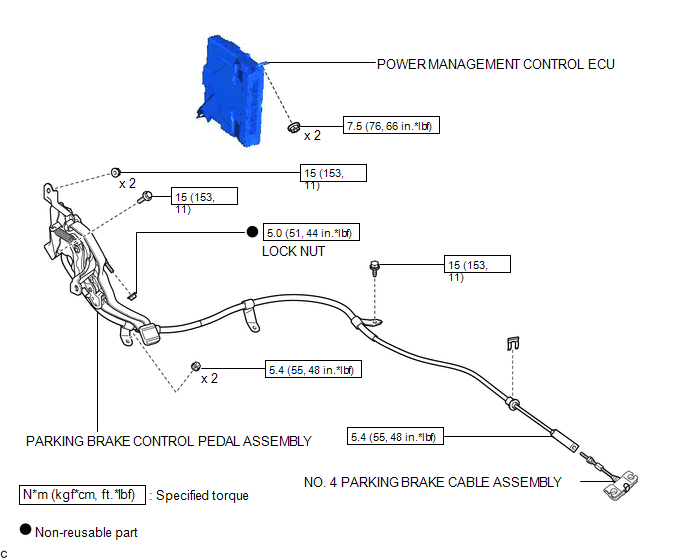

Fig 1: Parking Brake Pedal Replacement Components With Torque Specifications (2 Of 3)
GTY591121Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


GTY610139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Parking Brake Pedal Replacement Components With Torque Specifications (3 Of 3)
GTY588875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
