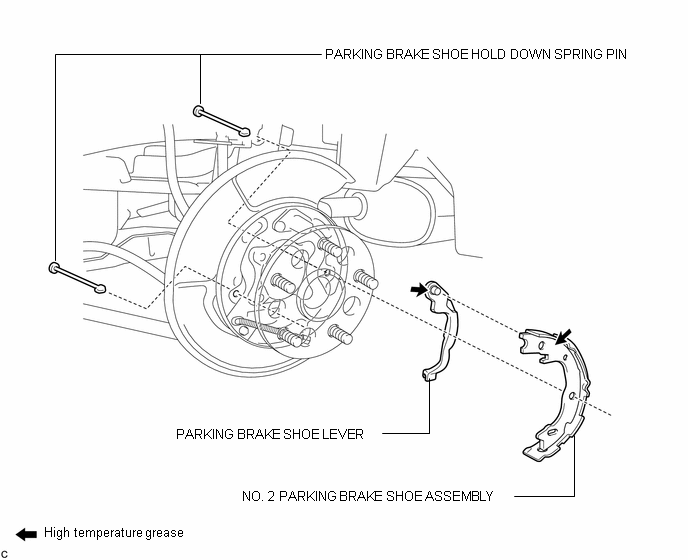

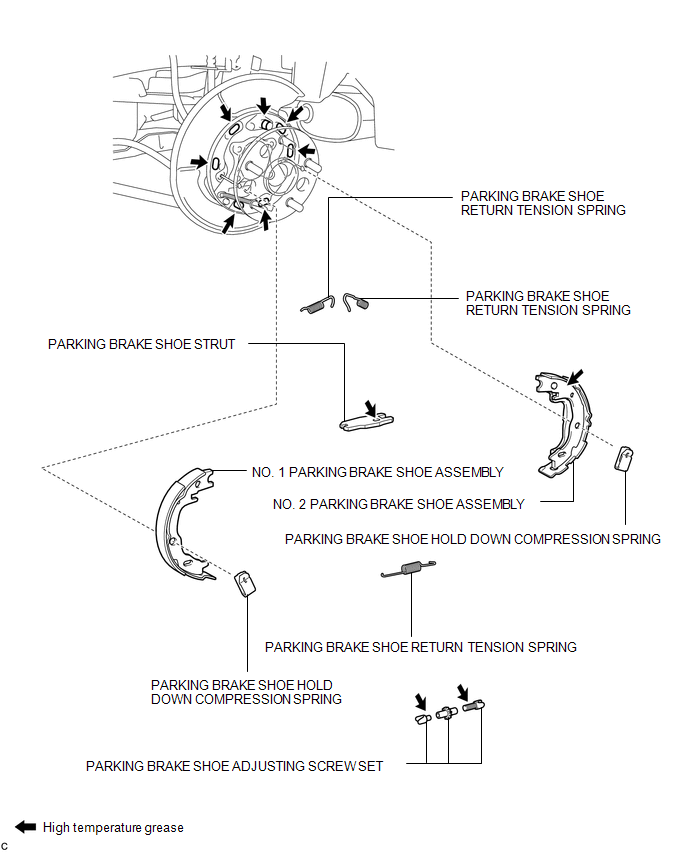

Home >> Toyota >> 2015 >> Avalon Hybrid Limited >> Repair and Diagnosis >> Brakes >> Parking Brake System >> Parking Brake (Service Information) (Hybrid) >> Parking Brake Assembly >> Components [10/2014 - ] >> Illustration
