Components [10/2014 - ]: Illustration

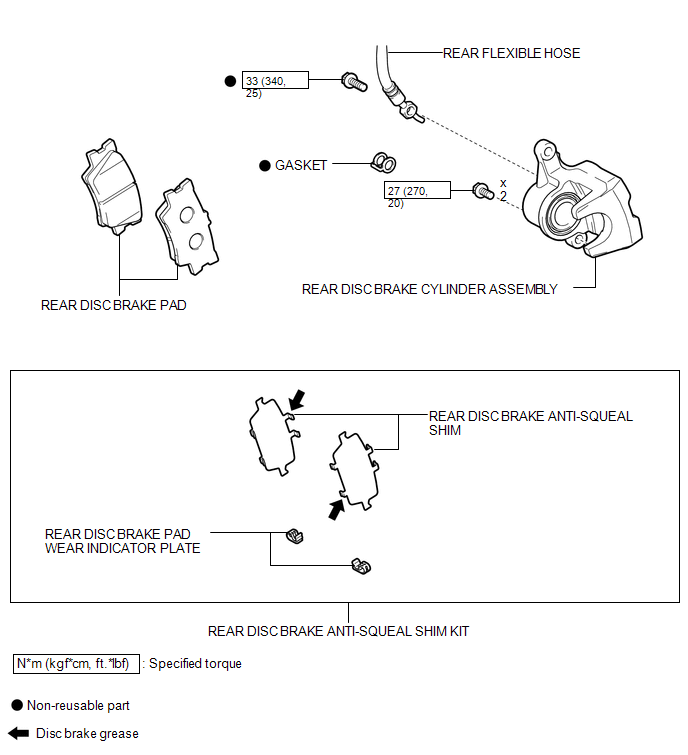

Fig 1: Rear Brake Replacement Components With Torque Specifications (1 Of 3)
GTY584730Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

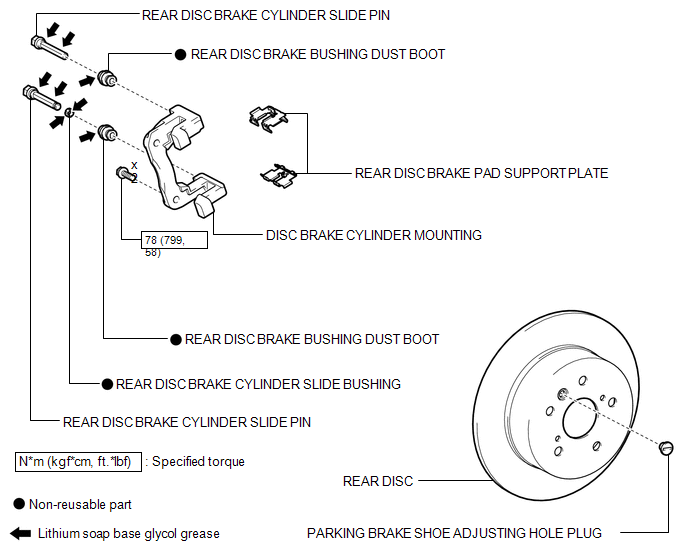

Fig 1: Rear Brake Replacement Components With Torque Specifications (2 Of 3)
GTY592829Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

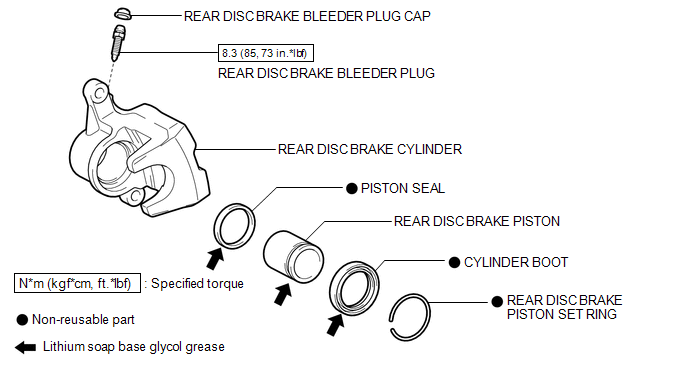

Fig 1: Rear Brake Replacement Components With Torque Specifications (3 Of 3)
GTY563139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
