Components [10/2014 - ]: Illustration

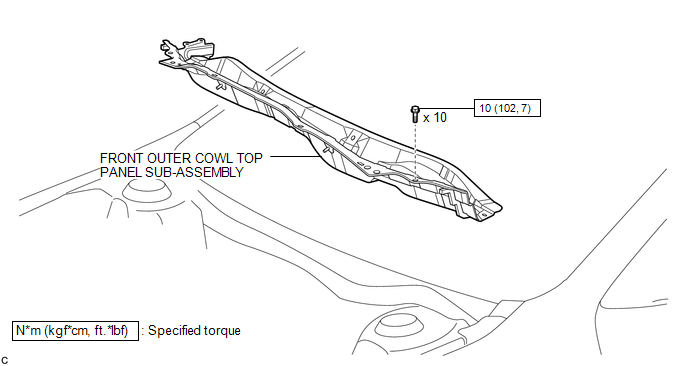

Fig 1: Brake Booster Replacement Components With Torque Specification (1 Of 3)
GTY590138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


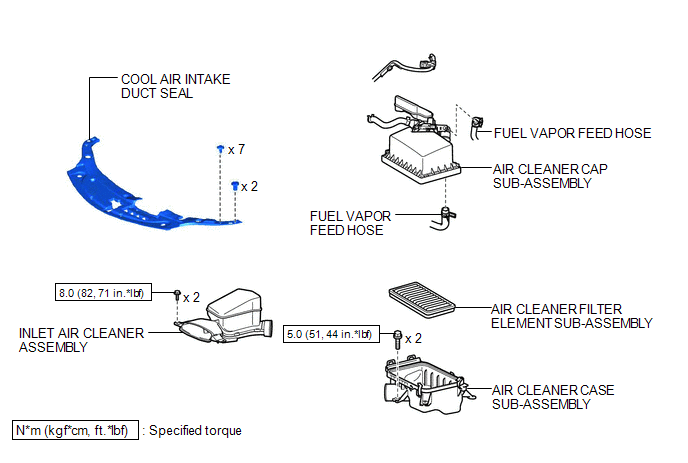

Fig 1: Brake Booster Replacement Components With Torque Specification (2 Of 3)
GTY596564Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

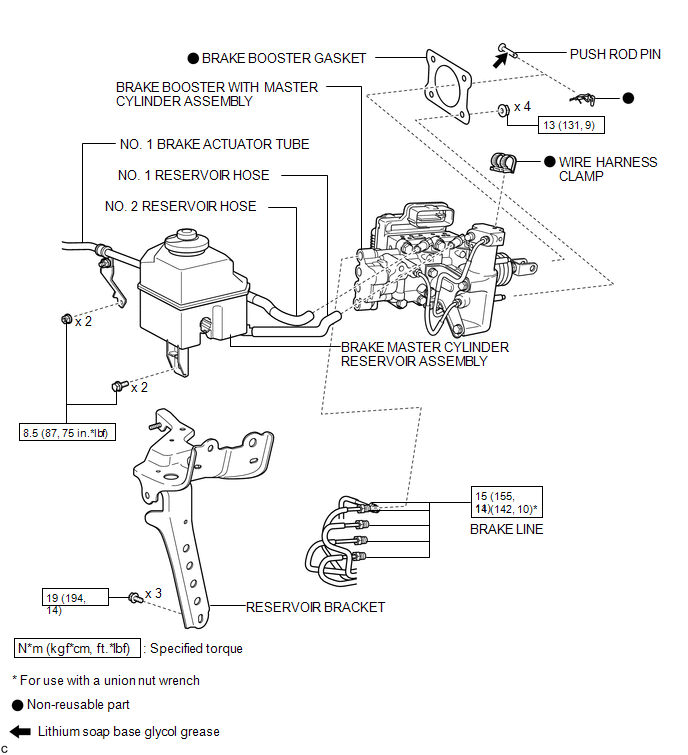

Fig 1: Brake Booster Replacement Components With Torque Specification (3 Of 3)
GTY595303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
