Disposal [10/2014 - ]: Procedure

DISPOSE OF BRAKE BOOSTER PUMP ASSEMBLY

Remove the accumulator from the brake booster pump assembly.
Secure the accumulator in a vise.

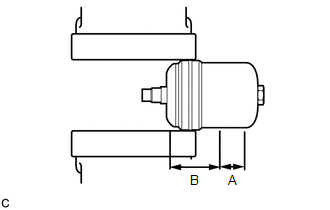

Using a hacksaw, make a cut in the side of the accumulator within location A to release the high-pressure gas.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Location	Length
A	25 mm (0.984 in.)
B	60 mm (2.36 in.)

WARNING:

Small pieces of metal may fly out when cutting into the accumulator. Put a cloth over the hacksaw when cutting the accumulator. Cut the accumulator slowly so that the gas will be released gradually.

HINT:

The gas is colorless, odorless and non-poisonous.
