Components [10/2014 - ]: Illustration

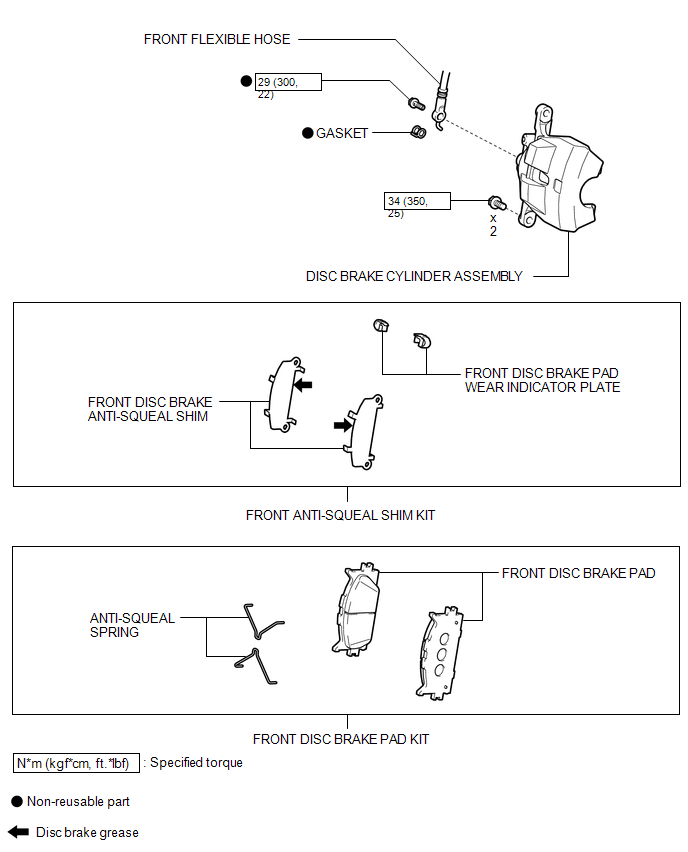

Fig 1: Front Brake Replacement Components With Torque Specifications (1 Of 3)
GTY576262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

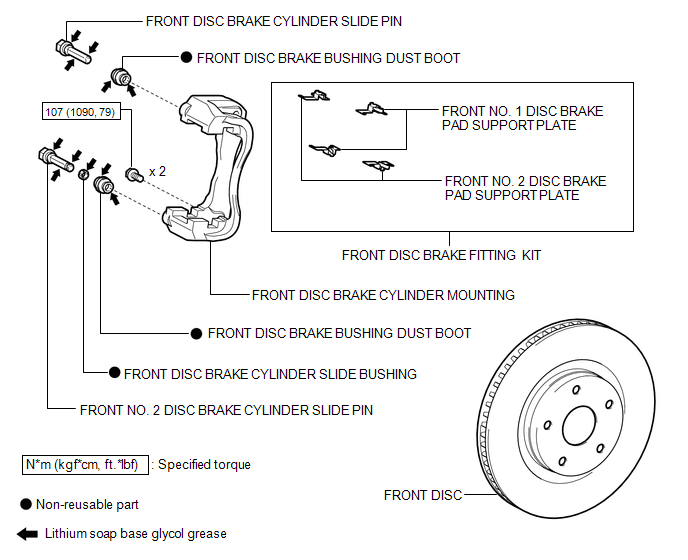

Fig 1: Front Brake Replacement Components With Torque Specifications (2 Of 3)
GTY568694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

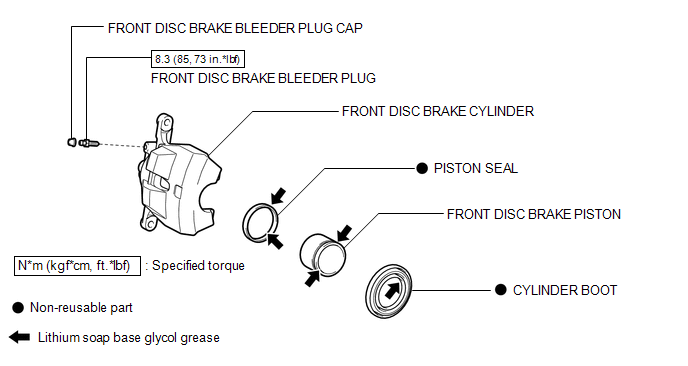

Fig 1: Front Brake Replacement Components With Torque Specifications (3 Of 3)
GTY575413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
