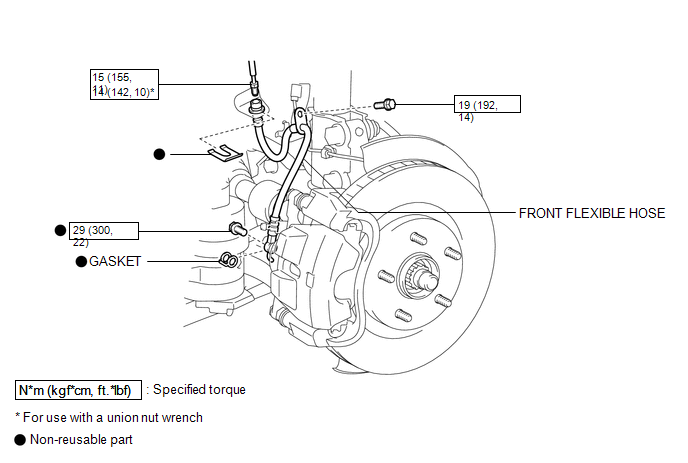

Home >> Toyota >> 2015 >> Avalon Hybrid Limited >> Repair and Diagnosis >> Brakes >> Mechanical - Hydraulic >> Brake System (Front) - Service Information - (Hybrid) >> Front Brake Flexible Hose >> Components [10/2014 - ] >> Illustration
