Removal [10/2014 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work (Refer to PRECAUTION [10/2014 - ] ).

  2. DISCONNECT CABLE FROM AUXILIARY BATTERY NEGATIVE TERMINAL

    (Refer to REMOVAL [10/2014 - ] )

  3. REMOVE BRAKE PEDAL STROKE SENSOR ASSEMBLY

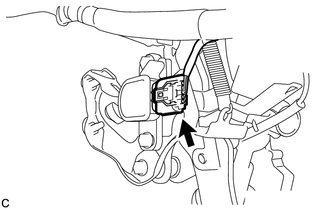

    1. Disconnect the connector from the brake pedal stroke sensor assembly.
      GTY318944Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

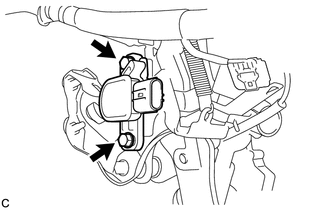

    2. Remove the 2 bolts and brake pedal stroke sensor assembly from the brake pedal support assembly.
      GTY318945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Do not drop the brake pedal stroke sensor assembly.
      • If the brake pedal stroke sensor assembly has been dropped, replace the brake pedal stroke sensor assembly with a new one.
