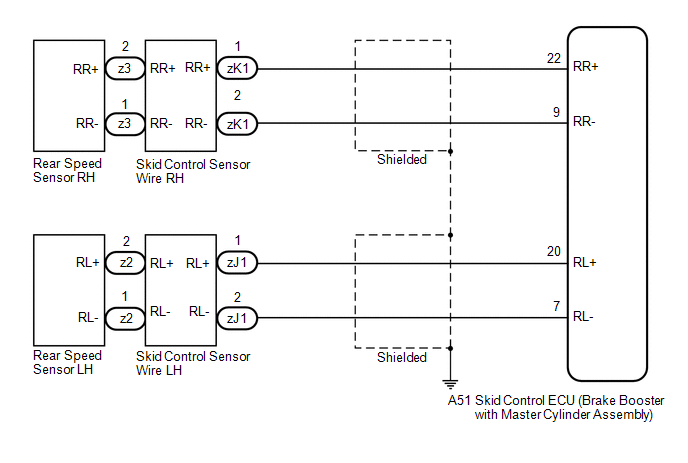

DTC C1273/73: Low Output Signal of Rear Speed Sensor RH (Test Mode DTC) ; DTC C1274/74: Low Output Signal of Rear Speed Sensor LH (Test Mode DTC) ; DTC C1466/33: Rear Speed Sensor RH Circuit; DTC C1467/34: Rear Speed Sensor LH Circuit [10/2014 - ]: Wiring Diagram

GTY540075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
