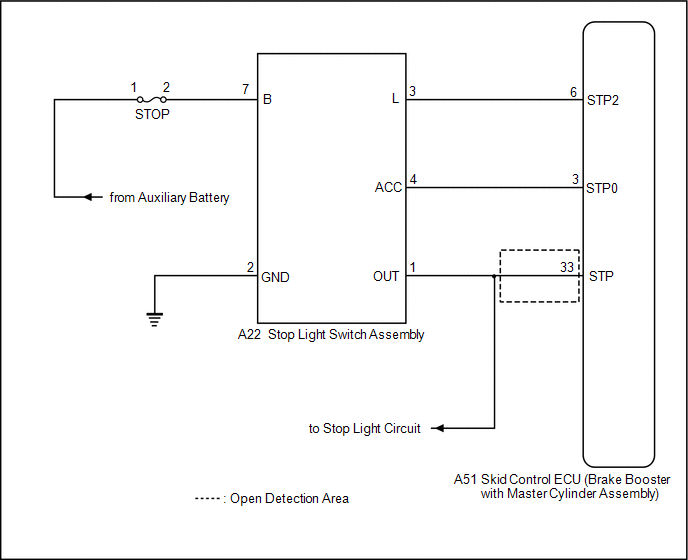

DTC C1249/49: Open in Stop Light Switch Circuit [10/2014 - 10/2015]: Wiring Diagram

GTY573289

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
