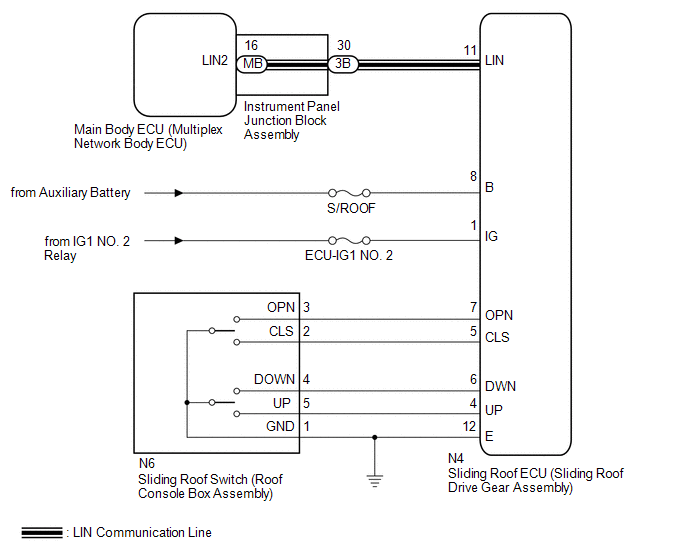

Sliding Roof does not Move by Operating Sliding Roof Control Switch [10/2014 - ]: Wiring Diagram

GTY582572

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
