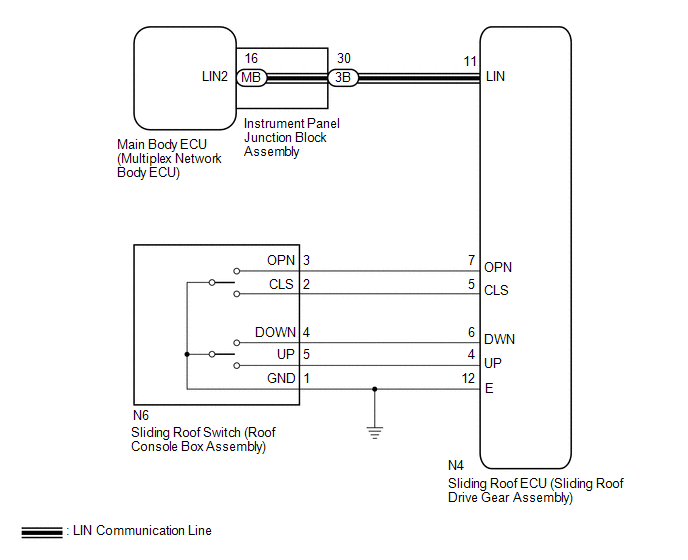

DTC B2341: Sensor (Motor) Failure; DTC B2344: Position Failure [10/2014 - ]: Wiring Diagram

GTY562192

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
