Inspection [10/2014 - ]: Procedure
- INSPECT SLIDING ROOF SWITCH (ROOF CONSOLE BOX ASSEMBLY)
- Measure the resistance according to the value(s) in the table below.
Standard Resistance

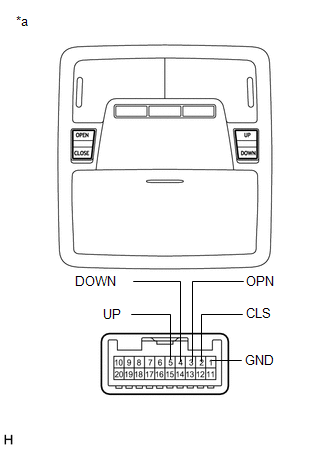

Tester Connection Condition Specified Condition 5 (UP) - 1 (GND) UP switch is pressed Below 1 Ω 5 (UP) - 1 (GND) UP switch is not pressed 10 kΩ or higher 4 (DOWN) - 1 (GND) DOWN switch is pressed Below 1 Ω 4 (DOWN) - 1 (GND) DOWN switch is not pressed 10 kΩ or higher 3 (OPN) - 1 (GND) OPEN switch is pressed Below 1 Ω 3 (OPN) - 1 (GND) OPEN switch is not pressed 10 kΩ or higher 2 (CLS) - 1 (GND) CLOSE switch is pressed Below 1 Ω 2 (CLS) - 1 (GND) CLOSE switch is not pressed 10 kΩ or higher TEXT IN ILLUSTRATION*a Component without harness connected
(Sliding Roof Switch (Roof Console Box Assembly))If the result is not as specified, replace the sliding roof switch (roof console box assembly).
- Measure the resistance according to the value(s) in the table below.
