Reassembly [10/2014 - ]: Procedure

INSTALL SLIDING ROOF DRIVE CABLE SUB-ASSEMBLY

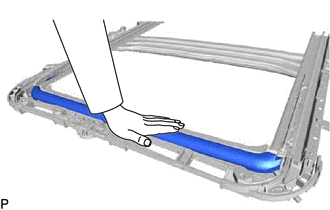

Hold down the roof wind deflector panel sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

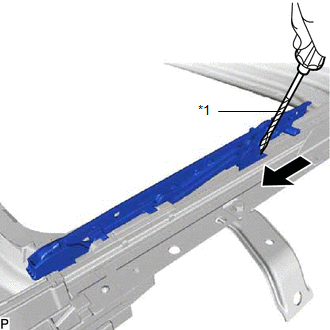

Using a screwdriver, slide the sliding roof drive cable sub-assembly in the direction indicated by the arrow in the illustration to install it.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*1	Protective Tape

HINT:

Tape the screwdriver tip before use.
Use the same procedure for the other sliding roof drive cable sub-assembly.

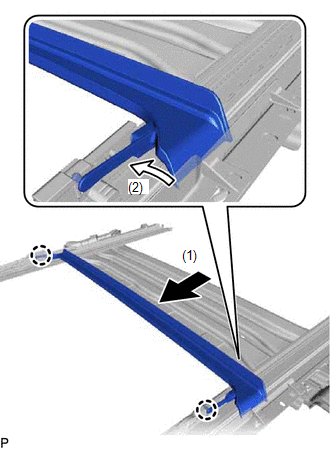

INSTALL REAR ROOF DRIP CHANNEL

Insert the rear roof drip channel in the direction indicated by the arrow (1) in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Engage the 2 claws in the direction indicated by the arrow (2) in the illustration to install the rear roof drip channel.

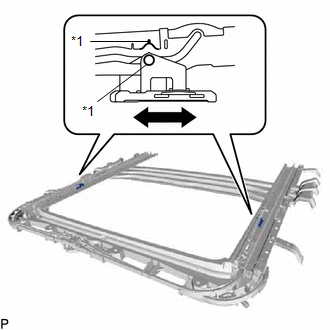

ADJUST FULLY CLOSED POSITION

Using a screwdriver, slide the sliding roof drive cable sub-assembly in either direction indicated by the arrows in the illustration and alignment marks.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*1	Alignment Mark

HINT:

Tape the screwdriver tip before use.

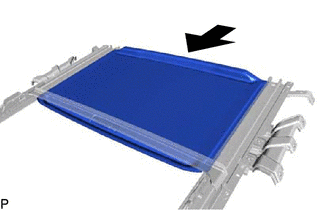

INSTALL SUNSHADE TRIM SUB-ASSEMBLY

Insert the sunshade trim sub-assembly into the sliding roof housing sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

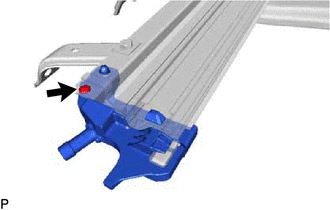

Install the sliding roof piece sub-assembly LH with the screw.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 1.5 N*m (15 kgf*cm, 13 in.*lbf)

HINT:

Use the same procedure for the RH side.

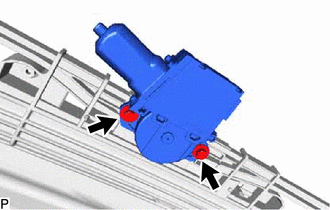

INSTALL SLIDING ROOF DRIVE GEAR ASSEMBLY

Install the sliding roof drive gear assembly with the 2 bolts.

Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

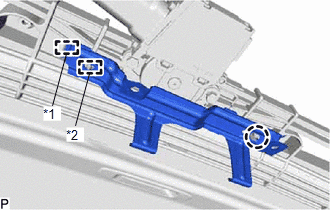

Engage the guide and pin.

TEXT IN ILLUSTRATION

*1	Guide
*2	Pin

Engage the claw to install the map light bracket.
