Disassembly [10/2014 - ]: Procedure

  1. REMOVE SLIDING ROOF DRIVE GEAR ASSEMBLY

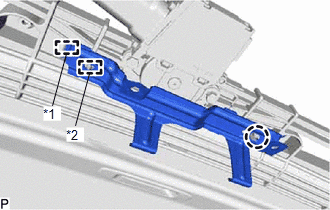

    1. Disengage the claw.
      GTY580376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Guide
      *2 Pin
    2. Disengage the guide and pin to remove the map light bracket.
    3. Remove the 2 bolts and sliding roof drive gear assembly.
      GTY602373Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE SUNSHADE TRIM SUB-ASSEMBLY
    1. Remove the screw and sliding roof piece sub-assembly LH.
      GTY560445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH side.

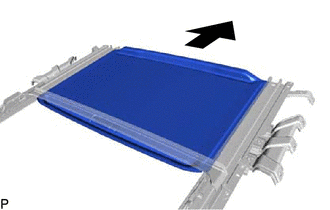

    2. Slide and remove the sunshade trim sub-assembly.
      GTY366366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE REAR ROOF DRIP CHANNEL

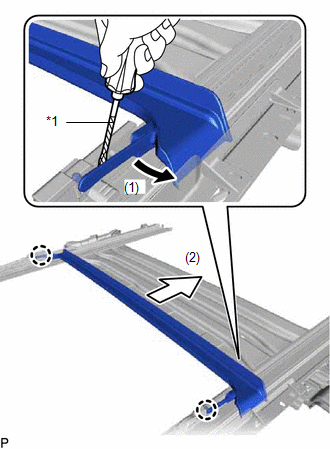

    1. Using a screwdriver, disengage the 2 claws in the direction indicated by the arrow (1) in the illustration.
      GTY563176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Protective Tape

      HINT:

      Tape the screwdriver tip before use.

    2. Then slide the rear roof drip channel in the direction indicated by the arrow (2) in the illustration to remove it.
  4. REMOVE SLIDING ROOF DRIVE CABLE SUB-ASSEMBLY
    NOTE:

    Do not disassemble the sliding roof drive cable sub-assembly except when replacing it.

    1. Hold down the roof wind deflector panel sub-assembly.
      GTY560448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

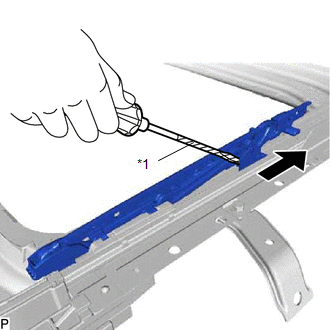

    2. Using a screwdriver, slide the sliding roof drive cable sub-assembly in the direction indicated by the arrow in the illustration to remove it.
      GTY578254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Protective Tape

      HINT:

      • Tape the screwdriver tip before use.
      • Use the same procedure for the other sliding roof drive cable sub-assembly.
