Components [10/2014 - ]: Illustration

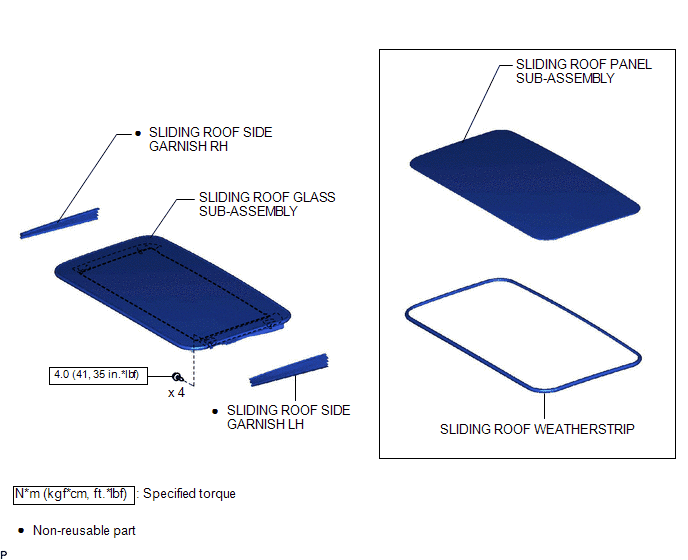

Fig 1: Sliding Roof Housing Replacement Components With Torque Specifications (1 Of 3)
GTY738931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

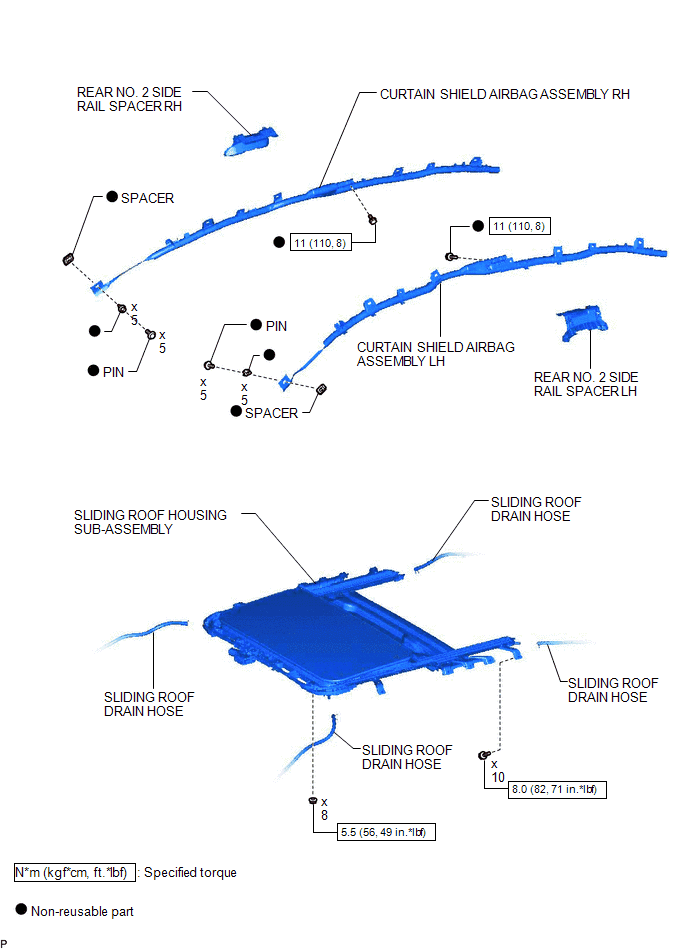

Fig 1: Sliding Roof Housing Replacement Components With Torque Specifications (2 Of 3)
GTY540396Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

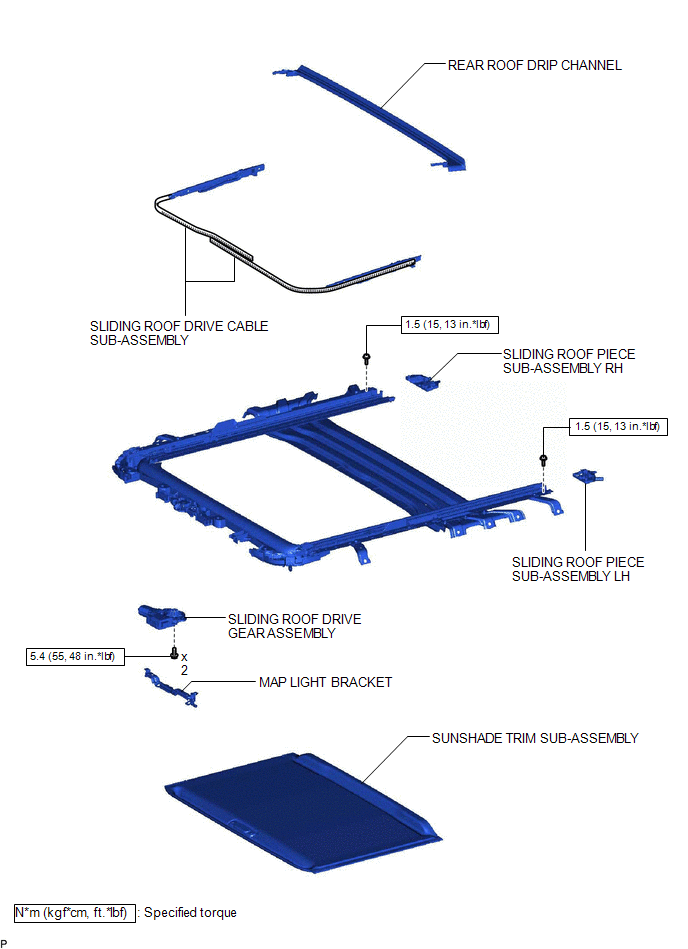

Fig 1: Sliding Roof Housing Replacement Components With Torque Specifications (3 Of 3)
GTY368996Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
