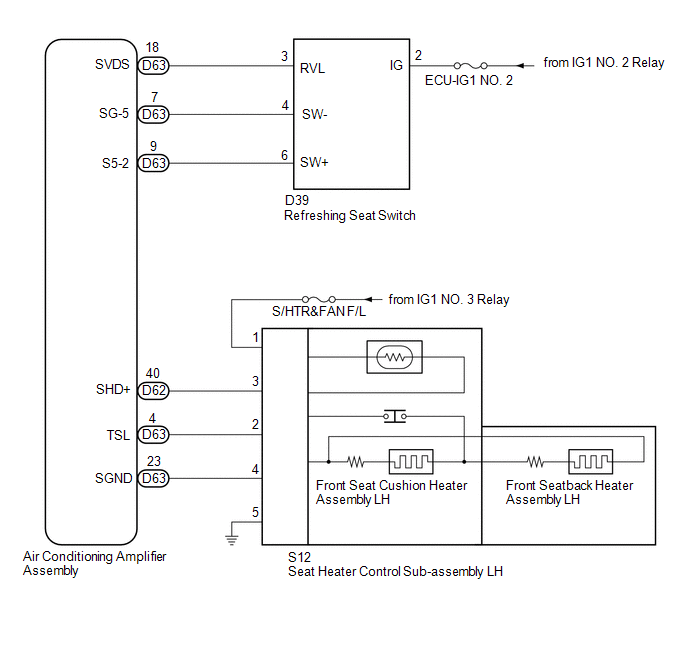

Driver Side Seat Heater does not Operate [10/2014 - ]: Wiring Diagram

GTY566294

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
