Removal [10/2015 - ]: Procedure

  1. REMOVE NO. 2 FORWARD RECOGNITION COVER (w/ Toyota Safety Sense P)

    Refer to PROCEDURE - Step 1

  2. REMOVE NO. 1 FORWARD RECOGNITION COVER (w/ Toyota Safety Sense P)

    Refer to PROCEDURE - Step 2

  3. REMOVE INNER REAR VIEW MIRROR ASSEMBLY (w/o EC Mirror)
    1. Using a T20 "TORX" socket wrench, remove the screw.
      GTY378161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Slide the inner rear view mirror assembly as shown in the illustration to remove it.
  4. REMOVE INNER REAR VIEW MIRROR STAY HOLDER COVER (w/ EC Mirror)
    1. w/o Toyota Safety Sense P:
      1. Disengage the 2 claws and slide the inner rear view mirror stay holder cover as shown in the illustration.
        GTY378203Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disengage the 2 claws to remove the inner rear view mirror stay holder cover.
        GTY378202Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE INNER REAR VIEW MIRROR ASSEMBLY (w/ EC Mirror)
    1. w/o Toyota Safety Sense P:
      1. Disconnect the connector.
        GTY366635Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Using a T20 "TORX" socket wrench, remove the screw.
      3. Slide the inner rear view mirror assembly as shown in the illustration to remove it.
        GTY374724Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Toyota Safety Sense P:
      1. Disconnect the connector.
        GTY561510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

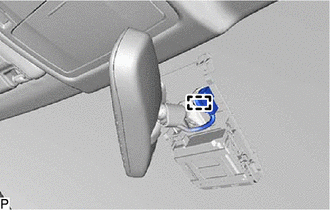

      2. Disengage the clamp.
        GTY602612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Using a T20 "TORX" socket wrench, remove the screw.
        GTY561508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      4. Slide the inner rear view mirror assembly as shown in the illustration to remove it.
