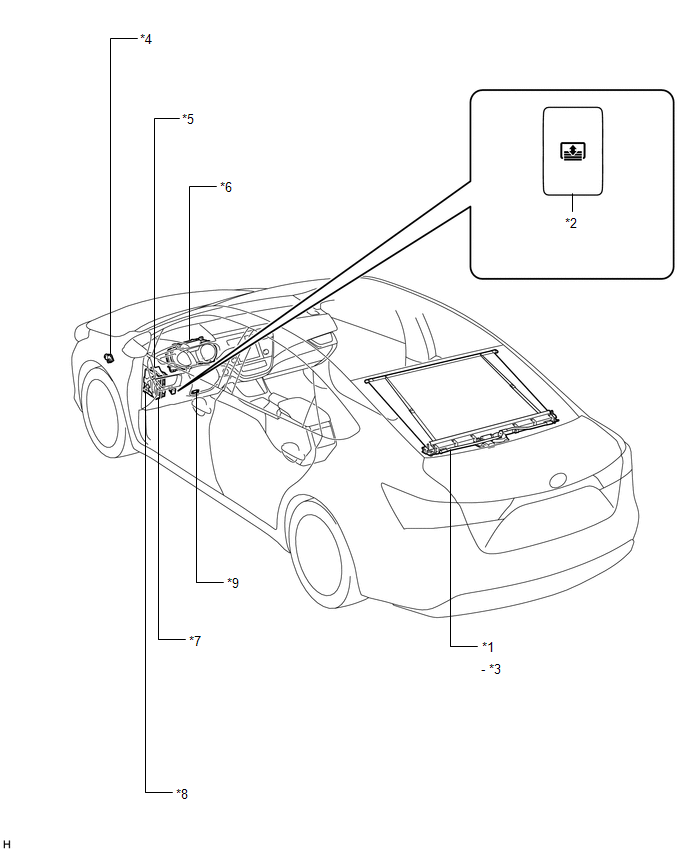

Parts Location [10/2015 - ]: Illustration

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	REAR WINDOW SHADE ASSEMBLY	*2	CURTAIN SWITCH ASSEMBLY
*3	REAR SUNSHADE RELAY	*4	SHIFT LEVER POSITION SENSOR
*5	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)	*6	COMBINATION METER ASSEMBLY
*7	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 1 FUSE - PANEL FUSE	*8	HYBRID VEHICLE CONTROL ECU ASSEMBLY
*9	DLC3	-	-
