Reassembly [10/2014 - 10/2015]: Procedure

  1. INSTALL NO. 1 ROOF WIRE (w/o Sliding Roof)

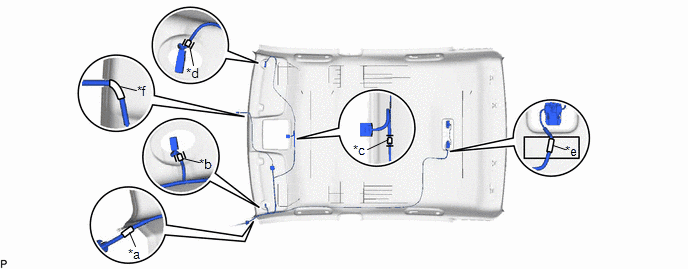

    1. Align the marking tape (A) on the No. 1 roof wire with the vehicle front end of the roof headlining.
      GTY365692Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Marking Tape (A) *b Marking Tape (B)
      *c Marking Tape (C) *d Marking Tape (D)
      *e Marking Tape (E) *f Marking Tape (F)
    2. Align the edge of the marking tape (B) on the No. 1 roof wire with the visor opening and in between the lines on the roof headlining.
    3. Align the edge of the marking tape (C) on the No. 1 roof wire with the between the lines on the roof headlining.
    4. Align the edge of the marking tape (D) on the No. 1 roof wire with the visor opening and in between the lines on the roof headlining.
    5. Align the edge of the marking tape (E) on the No. 1 roof wire with the marking on the roof headlining.
    6. Align the edge of the marking tape (F) on the No. 1 roof wire with the notch on the roof headlining.

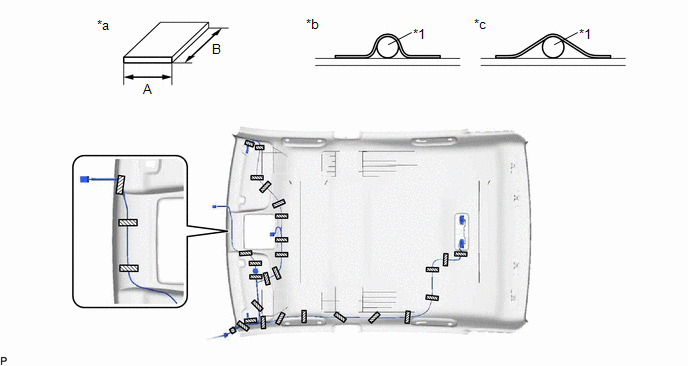

    7. Apply adhesive tape to the roof headlining as shown in the illustration.
      GTY367650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 No. 1 Roof Wire - -
      *a Adhesive Tape Size *b CORRECT
      *c INCORRECT - -
      Adhesive Tape - -
      ADHESIVE TAPE SIZE

      Area Dimension
      A 20 mm (0.787 in.)
      B 100 mm (3.94 in.)
  2. INSTALL NO. 1 ROOF WIRE (w/ Sliding Roof)

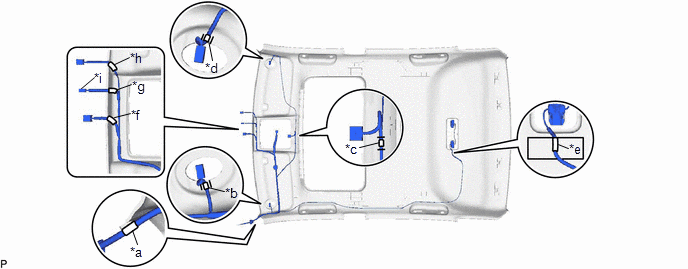

    1. Align the marking tape (A) on the No. 1 roof wire with the vehicle front end of the roof headlining.
      GTY364260Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Marking Tape (A) *b Marking Tape (B)
      *c Marking Tape (C) *d Marking Tape (D)
      *e Marking Tape (E) *f Marking Tape (F)
      *g Marking Tape (G) *h Marking Tape (H)
      *i with Rain Sensor - -
    2. Align the edge of the marking tape (B) on the No. 1 roof wire with the visor opening and in between the lines on the roof headlining.
    3. Align the edge of the marking tape (C) on the No. 1 roof wire with the between the lines on the roof headlining.
    4. Align the edge of the marking tape (D) on the No. 1 roof wire with the visor opening and in between the lines on the roof headlining.
    5. Align the edge of the marking tape (E) on the No. 1 roof wire with the marking on the roof headlining.
    6. Align the edge of the marking tape (F) on the No. 1 roof wire with the notch on the roof headlining.
    7. w/ Rain Sensor:
      1. Align the edge of the marking tape (G) on the No. 1 roof wire with the notch on the roof headlining.
    8. Align the edge of the marking tape (H) on the No. 1 roof wire with the notch on the roof headlining.

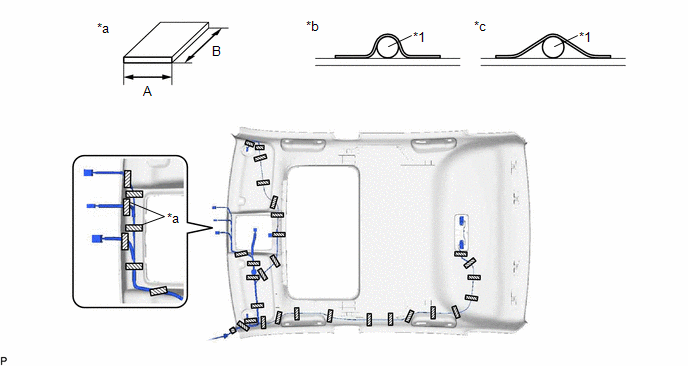

    9. Apply adhesive tape to the roof headlining as shown in the illustration.
      GTY366369Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 No. 1 Roof Wire - -
      *a Adhesive Tape Size *b CORRECT
      *c INCORRECT *d with Rain Sensor
      Adhesive Tape - -
      ADHESIVE TAPE SIZE

      Area Dimension
      A 20 mm (0.787 in.)
      B 100 mm (3.94 in.)
  3. INSTALL NO. 2 ROOF HEADLINING PAD (w/o Sliding Roof)

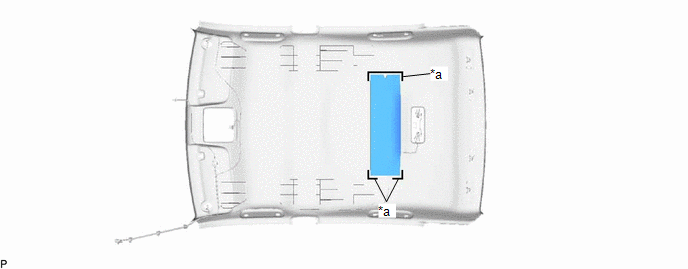

    1. Install the No. 2 roof headlining pad between the markings as shown in the illustration.
      GTY568420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Marking - -
  4. INSTALL ROOF HEADLINING PAD (w/o Sliding Roof)

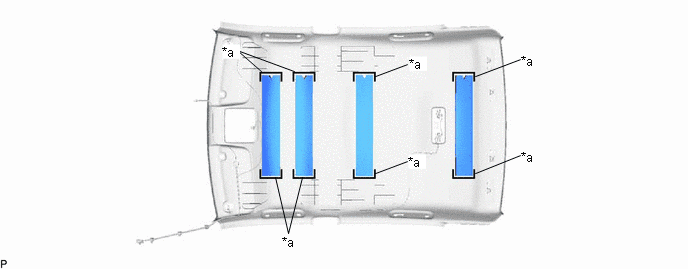

    1. Install the 4 roof headlining pads between the markings as shown in the illustration.
      GTY545035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Marking - -
  5. INSTALL NO. 1 ROOF SILENCER PAD (w/ Sliding Roof)

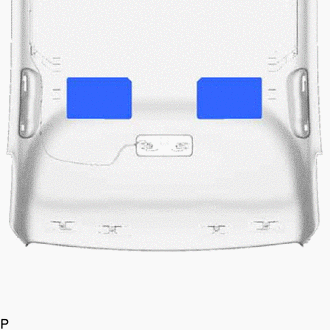

    1. Install the 2 No. 1 roof silencer pads as shown in the illustration.
      GTY552915Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL NO. 2 ANTENNA CORD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1
