Disassembly [10/2015 - ]: Procedure

  1. REMOVE NO. 2 ANTENNA CORD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 10

  2. REMOVE ROOF HEADLINING PAD (w/o Sliding Roof)
    1. Remove the 4 roof headlining pads.
      GTY472880Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE NO. 2 ROOF HEADLINING PAD (w/o Sliding Roof)
    1. Remove the No. 2 roof headlining pad.
      GTY481111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE NO. 1 ROOF SILENCER PAD (w/ Sliding Roof)
    1. Remove the 2 No. 1 roof silencer pads.
      GTY552915Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE NO. 1 ROOF WIRE (w/o Sliding Roof)
    1. Remove the adhesive tape from the roof headlining.

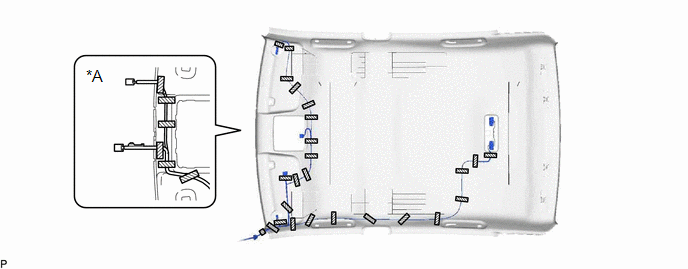

      GTY552836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Toyota Safety Sense P - -
      Adhesive Tape - -
    2. Remove the No. 1 roof wire from the roof headlining.
  6. REMOVE NO. 1 ROOF WIRE (w/ Sliding Roof)
    1. Remove the adhesive tape from the roof headlining.

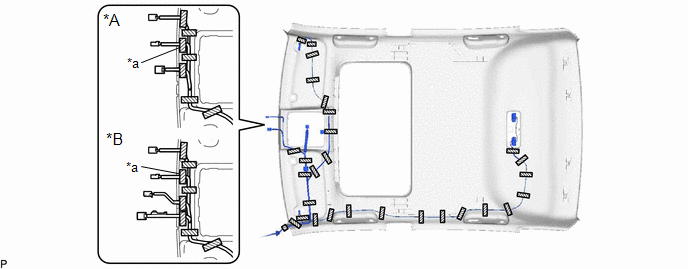

      GTY562912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/o Toyota Safety Sense P *B w/ Toyota Safety Sense P
      *a with Rain Sensor - -
      Adhesive Tape - -
    2. Remove the No. 1 roof wire from the roof headlining.
