Removal [10/2014 - ]: Procedure

  1. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL

    See step  1 See step  1

  2. REMOVE FRONT DOOR SCUFF PLATE LH

    See step  4 See step  4

  3. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH

    See step  5 See step  5

  4. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP LH

    See step  11

  5. REMOVE INSTRUMENT SIDE PANEL LH

    See step  12

  6. DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

    See step  13

  7. REMOVE LOWER NO. 1 INSTRUMENT PANEL SUB-ASSEMBLY

    See step  14

  8. REMOVE CURTAIN SWITCH ASSEMBLY

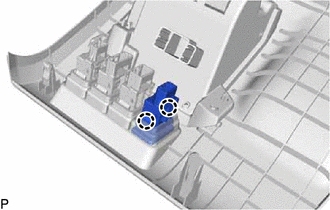

    1. Disengage the 2 claws and remove the curtain switch assembly.
