Removal [10/2014 - ]: Procedure

  1. REMOVE REAR SEAT ASSEMBLY

    (Refer to REMOVAL [10/2014 - ] )

  2. REMOVE REAR DOOR SCUFF PLATE LH

    See step  8 See step  8

  3. REMOVE REAR DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side.

  4. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP LH

    Refer to PROCEDURE - Step 4

  5. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP RH

    HINT:

    Use the same procedure as for the LH side.

  6. REMOVE REAR SEAT SIDE GARNISH LH

    See step  24 See step  24

  7. REMOVE REAR SEAT SIDE GARNISH RH

    HINT:

    Use the same procedure as for the LH side.

  8. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY LH

    See step  25 See step  25

  9. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  10. DISCONNECT REAR SEAT OUTER BELT ASSEMBLY LH

    Refer to PROCEDURE - Step 8

  11. DISCONNECT REAR SEAT OUTER BELT ASSEMBLY RH

    Refer to PROCEDURE - Step 9

  12. REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 2

  13. DISCONNECT REAR SEAT INNER WITH CENTER BELT ASSEMBLY LH

    Refer to PROCEDURE - Step 11

  14. REMOVE REAR SEAT SHOULDER BELT HOLE COVER

    Refer to PROCEDURE - Step 14

  15. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY

    Refer to PROCEDURE - Step 15

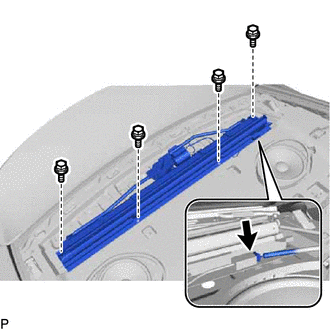

  16. REMOVE REAR SUNSHADE ASSEMBLY
    1. Disconnect the connector.
      GTY376251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 bolts and rear sunshade assembly.

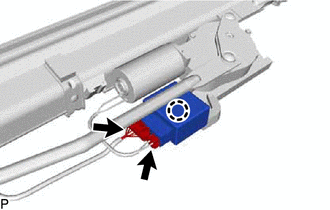

  17. REMOVE REAR SUNSHADE RELAY
    1. Disconnect the 2 connectors.
      GTY376249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the claw and remove the rear sunshade relay.
