Reassembly [10/2014 - ]: Procedure

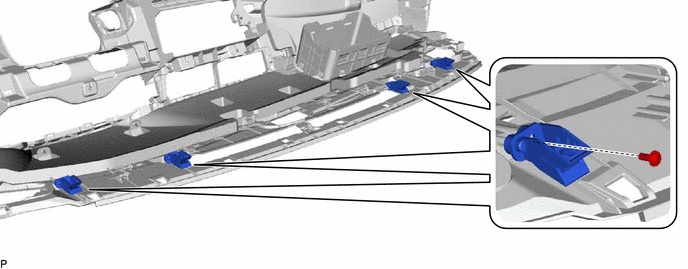

  1. INSTALL NO. 1 INSTRUMENT PANEL PIN
    1. Install the 4 No. 1 instrument panel pins with the 4 screws <D>.
      GTY570192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

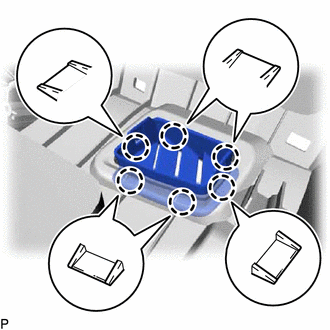

  2. INSTALL NO. 2 SIDE DEFROSTER NOZZLE
    1. Engage the 6 claws to install the No. 2 side defroster nozzle.
      GTY604560Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL ANTENNA CORD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

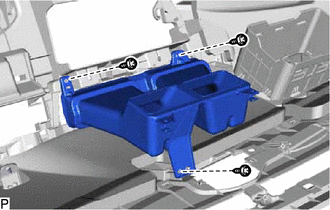

  4. INSTALL NO. 3 HEATER TO REGISTER DUCT
    1. Install the No. 3 heater to register duct with the 3 screws <D>.
      GTY570189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL NAVIGATION ANTENNA ASSEMBLY (w/ Navigation System)

    Refer to PROCEDURE - Step 1

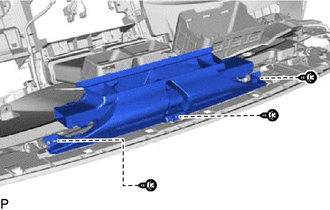

  6. INSTALL DEFROSTER NOZZLE ASSEMBLY
    1. Install the defroster nozzle assembly with the 3 screws <D>.
      GTY570191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

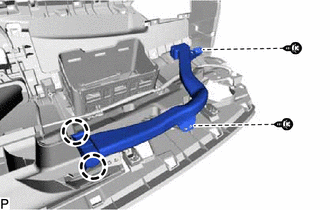

  7. INSTALL NO. 2 SIDE DEFROSTER NOZZLE DUCT
    1. Engage the 2 claws.
      GTY570190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the No. 2 side defroster nozzle duct with the 2 screws <D>.
  8. INSTALL INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY

    Refer to PROCEDURE - Step 2

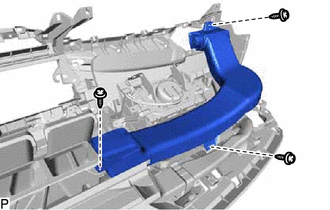

  9. INSTALL NO. 2 HEATER TO REGISTER DUCT
    1. Install the No. 2 heater to register duct with the 3 screws <D>.
      GTY604559Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

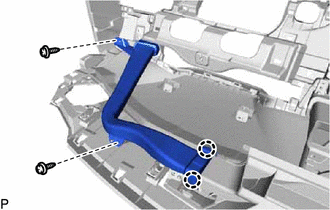

  10. INSTALL NO. 1 SIDE DEFROSTER NOZZLE DUCT
    1. Engage the 2 claws.
      GTY570188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the No. 1 side defroster nozzle duct with the 2 screws <D>.

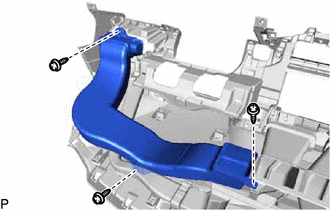

  11. INSTALL NO. 1 HEATER TO REGISTER DUCT
    1. Install the No. 1 heater to register duct with the 3 screws <D>.
      GTY570186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
