Reassembly [10/2015 - ]: Procedure

  1. INSTALL INSTRUMENT PANEL CUP HOLDER
    1. Install the 2 console box lenses to the instrument panel cup holder.
      GTY569758Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL CONSOLE BOX ILLUMINATION LIGHT ASSEMBLY (w/ Illumination)

    Refer to PROCEDURE - Step 1

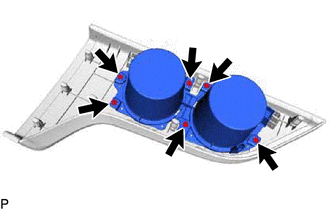

  3. INSTALL UPPER CONSOLE PANEL GARNISH COVER
    1. Install the upper console panel garnish cover with the 6 screws.
      GTY569759Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL CONSOLE BOX WIRE
    1. w/o Rear Air Conditioner Control:
      1. Engage the 2 clamps to install the console box wire.
        GTY544184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Rear Air Conditioner Control:
      1. Engage the 4 clamps to install the console box wire.
        GTY544182Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL NO. 2 POWER OUTLET SOCKET COVER

    Refer to PROCEDURE - Step 1

  6. INSTALL NO. 2 POWER OUTLET SOCKET ASSEMBLY

    Refer to PROCEDURE - Step 2

  7. INSTALL CONSOLE REAR END PANEL SUB-ASSEMBLY
    1. Connect the connector.
    2. Engage the 6 clips and 2 guides to install the console rear end panel sub-assembly.
      GTY544074Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL CIGAR LIGHTER HOLE COVER
    1. Engage the 4 claws to install the cigar lighter hole cover.
      GTY544185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
