Components [10/2014 - 10/2015]: Illustration

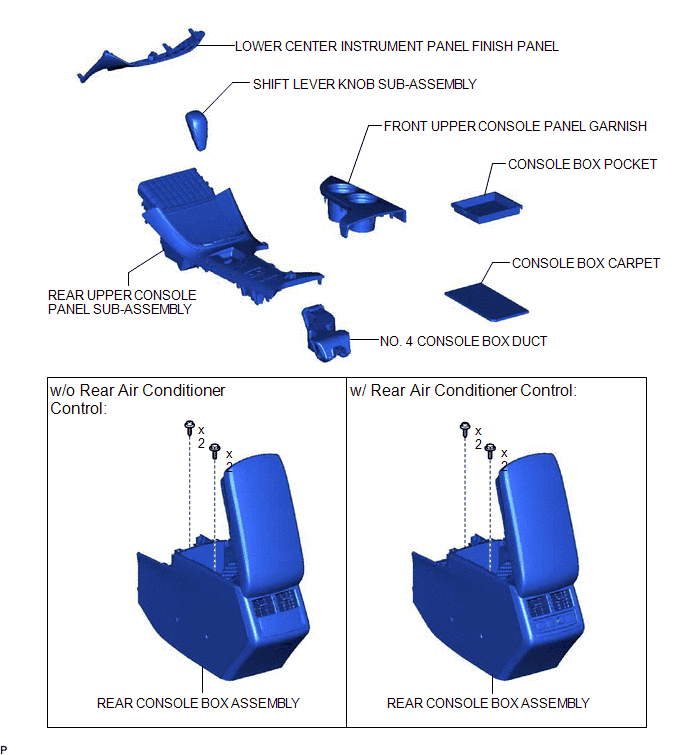

GTY366481

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

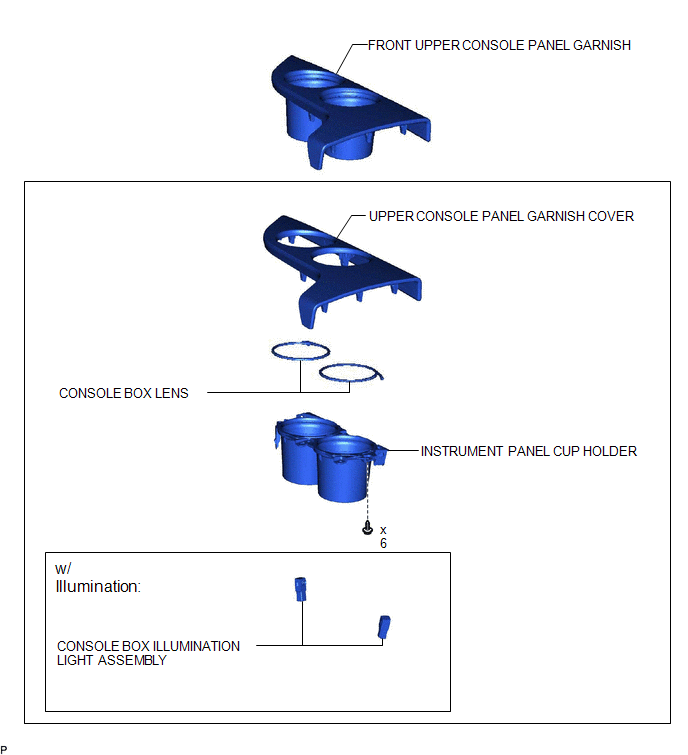

GTY383739

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

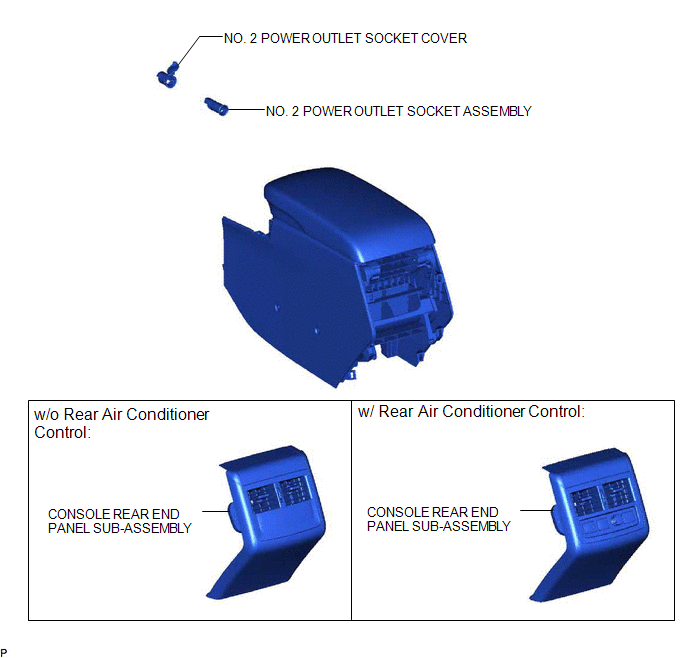

GTY382189

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
