Removal [10/2014 - ]: Procedure

  1. REMOVE CENTER ROOF DRIP SIDE FINISH MOULDING

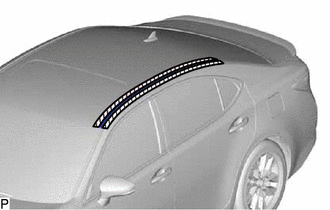

    1. Put protective tape around the center roof drip side finish moulding.
      GTY380979Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      Protective Tape

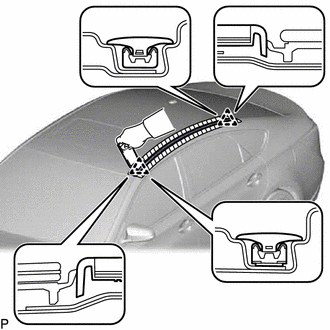

    2. Using a moulding remover, disengage the 2 No, 1 roof drip side finish moulding clips and remove the center roof drip side finish moulding.
      GTY369009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Do not remove the clips.
      • If any clip is damaged or fallen out, replace it with a new one.
