Removal [10/2014 - ]: Procedure

See step  1

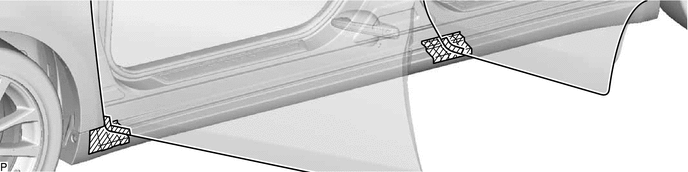

1. Put protective tape around the rocker panel moulding assembly and door.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   Protective Tape

   -

   -

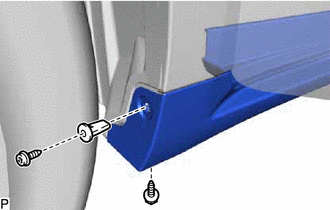

2. Remove the 2 screws and grommet.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

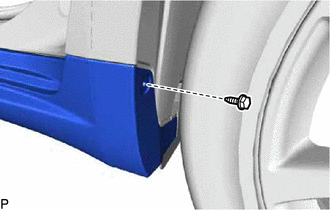

3. Remove the bolt.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

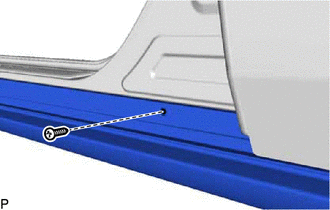

4. Remove the screw.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

5. Remove the 8 clips.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

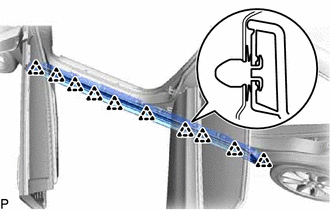

6. Disengage the 10 clips and remove the rocker panel moulding assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

7. Remove the 10 clips from the rocker panel moulding assembly.
