Removal [10/2014 - ]: Procedure

  1. REMOVE REAR BUMPER PLATE LH

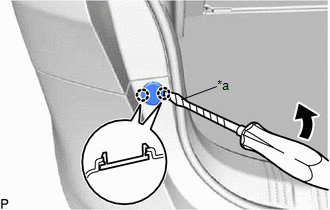

    1. Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws to remove the rear bumper plate LH as shown in the illustration.
      GTY566666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Protective Tape
  2. REMOVE REAR BUMPER PLATE RH

    HINT:

    Use the same procedure as for the LH side.

  3. REMOVE REAR BUMPER ASSEMBLY

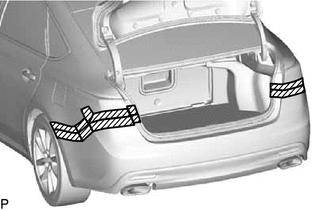

    1. Put protective tape around the rear bumper assembly as shown in the illustration.
      GTY369533Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      Protective Tape

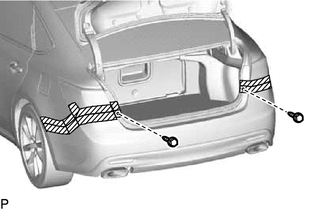

    2. Remove the 2 bolts.
      GTY369531Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

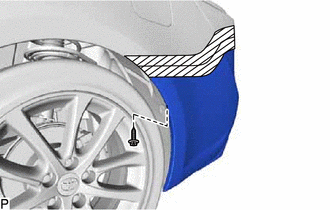

    3. Remove the screw.
      GTY369536Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH side and LH side.

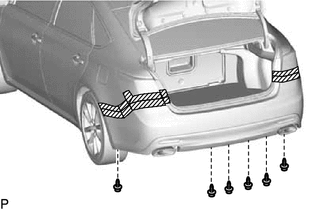

    4. Remove the 6 screws.
      GTY382526Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

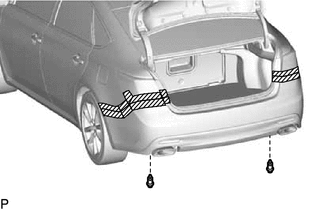

    5. Remove the 2 clips.
      GTY369538Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

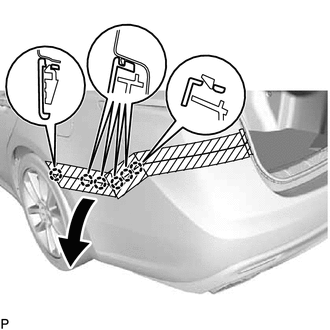

    6. Disengage the 6 claws as shown in the illustration.
      GTY369545Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH side and LH side.

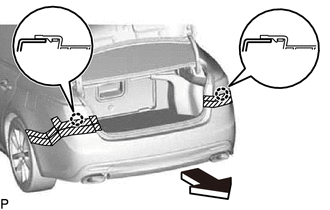

    7. Disengage the 2 claws and remove the rear bumper assembly as shown in the illustration.
      GTY369543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
