Reassembly [10/2014 - ]: Procedure

  1. INSTALL NO. 1 REAR BUMPER REINFORCEMENT

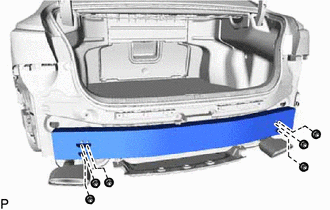

    1. Install the No. 1 rear bumper reinforcement with the 6 nuts.
      GTY577044Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 61 N*m (622 kgf*cm, 45 ft.*lbf)

  2. INSTALL REAR BUMPER ENERGY ABSORBER

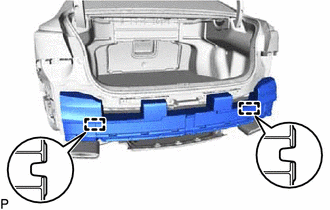

    1. Engage the 2 guides to install the rear bumper energy absorber.
      GTY577047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL REAR BUMPER SIDE SEAL LH

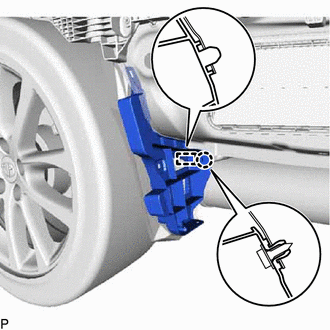

    1. Engage the guide and claw.
      GTY606116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

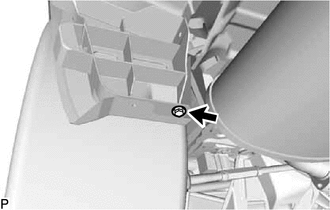

    2. Install the screw.
      GTY577043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

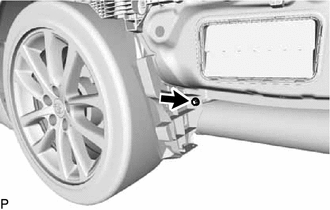

    3. Install the screw.
      GTY577042Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

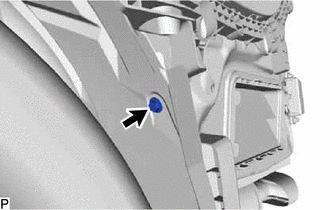

    4. Install the screw.
      GTY606115Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

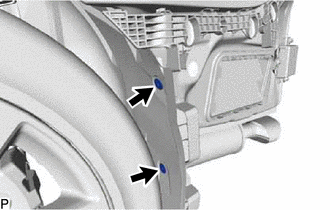

    5. Install the rear bumper side seal LH with the 2 grommets.
      GTY606114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL REAR BUMPER SIDE SEAL RH

    HINT:

    Use the same procedure as for the LH side.

  5. INSTALL REAR BUMPER SIDE RETAINER LH

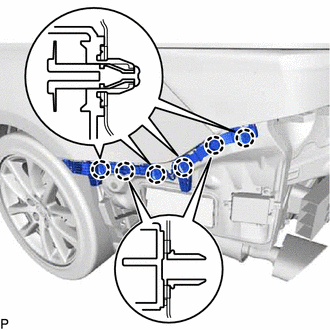

    1. Engage the 6 claws.
      GTY577038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

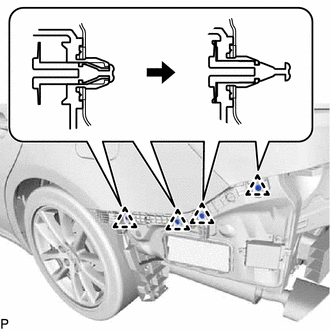

    2. Engage the 4 clips as shown in the illustration to install the rear bumper side retainer LH.
      GTY369518Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL REAR BUMPER SIDE RETAINER RH

    HINT:

    Use the same procedure as for the LH side.

  7. INSTALL REAR BUMPER MOULDING
    1. Engage the 3 claws.
      GTY577036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the rear bumper moulding with the 6 screws.
      GTY577035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL LOWER REAR BUMPER COVER

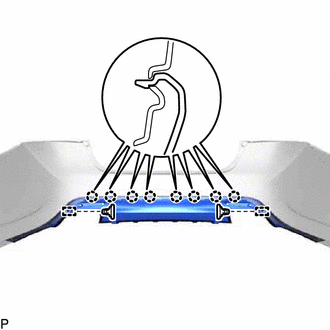

    1. Engage the 2 guides and 8 claws.
      GTY577037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 2 outside moulding retainers.

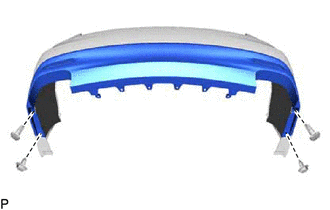

    3. Install the lower rear bumper cover with the 2 screws and 2 clips.
      GTY577033Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL REFLEX REFLECTOR ASSEMBLY LH

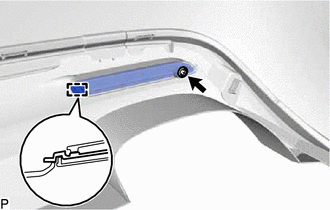

    1. Engage the guide.
      GTY577032Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the reflex reflector assembly LH with the screw.
  10. INSTALL REFLEX REFLECTOR ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  11. INSTALL REAR BUMPER PAD LH
    1. Wipe off any tape adhesive residue with cleaner.

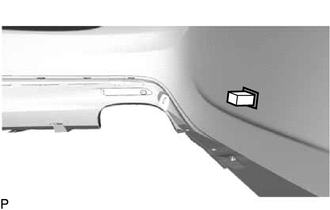

    2. Install a new rear bumper pad LH.
      GTY577034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Stick the new rear bumper pad LH on the line marked on the rear bumper assembly.

  12. INSTALL REAR BUMPER PAD RH
    1. Wipe off any tape adhesive residue with cleaner.

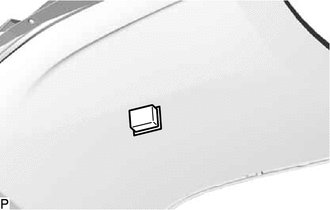

    2. Install a new rear bumper pad RH.
      GTY606113Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Stick the new rear bumper pad RH on the line marked on the rear bumper assembly.
