Disassembly [10/2014 - ]: Procedure

  1. REMOVE REAR BUMPER PAD LH
    1. Remove the rear bumper pad LH.
      GTY577034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE REAR BUMPER PAD RH
    1. Remove the rear bumper pad RH.
      GTY606113Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE REFLEX REFLECTOR ASSEMBLY LH
    1. Remove the screw.
      GTY577032Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide to remove the reflex reflector assembly LH.
  4. REMOVE REFLEX REFLECTOR ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  5. REMOVE LOWER REAR BUMPER COVER
    1. Remove the 2 screws and 2 clips.
      GTY577033Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 outside moulding retainers.
      GTY577037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 8 claws and 2 guides to remove the lower rear bumper cover.
  6. REMOVE REAR BUMPER MOULDING
    1. Remove the 6 screws.
      GTY577035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 3 claws to remove the rear bumper moulding.
      GTY577036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE REAR BUMPER SIDE RETAINER LH

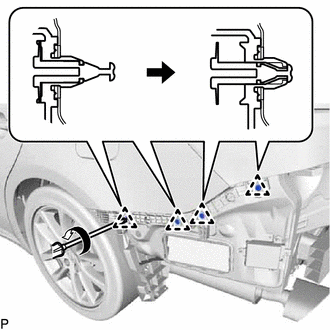

    1. Using a screwdriver, disengage the 4 clips as shown in the illustration.
      GTY369519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 6 claws to remove the rear bumper side retainer LH.
      GTY577038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE REAR BUMPER SIDE RETAINER RH

    HINT:

    Use the same procedure as for the LH side.

  9. REMOVE REAR BUMPER SIDE SEAL LH
    1. Remove the 2 grommets.
      GTY606114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the screw.
      GTY606115Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the screw.
      GTY577042Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the screw.
      GTY577043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disengage the guide and claw to remove the rear bumper side seal LH.
      GTY606116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE REAR BUMPER SIDE SEAL RH

    HINT:

    Use the same procedure as for the LH side.

  11. REMOVE REAR BUMPER ENERGY ABSORBER
    1. Disengage the 2 guides to remove the rear bumper energy absorber.
      GTY577047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE NO. 1 REAR BUMPER REINFORCEMENT
    1. Remove the 6 nuts and No. 1 rear bumper reinforcement.
      GTY577044Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
