Removal [10/2014 - ]: Procedure

  1. REMOVE SYMBOL EMBLEM
    1. Put protective tape around the symbol emblem.

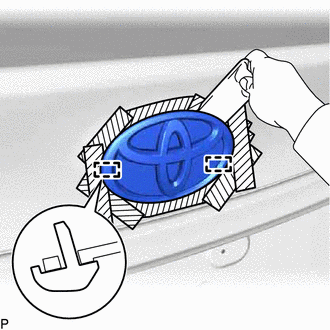

      GTY382523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      Protective Tape
    2. Using a moulding remover, separate the double-sided tape and disengage the 2 pins to remove the symbol emblem.
      NOTE:
      • If reusing the symbol emblem, take care not to damage the symbol emblem.
      • Be careful not to damage the vehicle body.
  2. REMOVE NO. 2 LUGGAGE COMPARTMENT DOOR NAME PLATE
    1. Put protective tape around the No. 2 luggage compartment door name plate.

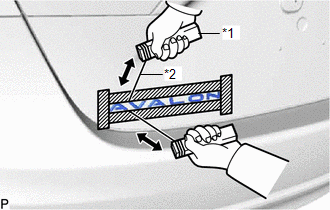

      GTY584733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Wooden Block
      *2 Piano Wire
      Protective Tape
    2. Insert a piano wire between the vehicle body and No. 2 luggage compartment door name plate.
    3. Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.
    4. Pull the piano wire and cut the double-sided tape that holds the No. 2 luggage compartment door name plate to the vehicle body.
      NOTE:
      • If reusing the No. 2 luggage compartment door name plate, take care not to damage the No. 2 luggage compartment door name plate.
      • Be careful not to damage the vehicle body.
    5. Remove the No. 2 luggage compartment door name plate.
  3. REMOVE NO. 3 LUGGAGE COMPARTMENT DOOR PLATE
    1. for XLE Plate:
      1. Put protective tape around the No. 3 luggage compartment door plate.

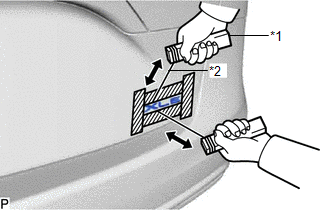

        GTY541293Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        TEXT IN ILLUSTRATION

        *1 Wooden Block
        *2 Piano Wire
        Protective Tape
    2. for LIMITED Plate:
      1. Put protective tape around the No. 3 luggage compartment door plate.

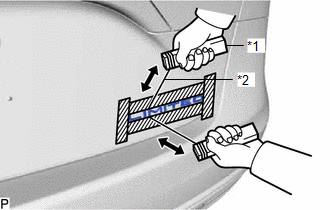

        GTY588046Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        TEXT IN ILLUSTRATION

        *1 Wooden Block
        *2 Piano Wire
        Protective Tape
    3. Insert a piano wire between the vehicle body and No. 3 luggage compartment door plate.
    4. Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.
    5. Pull the piano wire and cut the double-sided tape that holds the No. 3 luggage compartment door plate to the vehicle body.
      NOTE:
      • If reusing the No. 3 luggage compartment door plate, take care not to damage the No. 3 luggage compartment door plate.
      • Be careful not to damage the vehicle body.
    6. Remove the No. 3 luggage compartment door plate.
  4. REMOVE NO. 1 LUGGAGE COMPARTMENT DOOR NAME PLATE
    1. Put protective tape around the No. 1 luggage compartment door name plate.

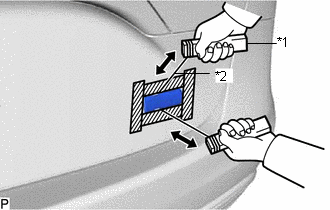

      GTY598849Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Wooden Block
      *2 Piano Wire
      Protective Tape
    2. Insert a piano wire between the vehicle body and No. 1 luggage compartment door name plate.
    3. Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.
    4. Pull the piano wire and cut the double-sided tape that holds the No. 1 luggage compartment door name plate to the vehicle body.
      NOTE:
      • If reusing the No. 1 luggage compartment door name plate, take care not to damage the No. 1 luggage compartment door name plate.
      • Be careful not to damage the vehicle body.
    5. Remove the No. 1 luggage compartment door name plate.
  5. REMOVE SIDE PANEL EMBLEM
    1. Put protective tape around the side panel emblem.

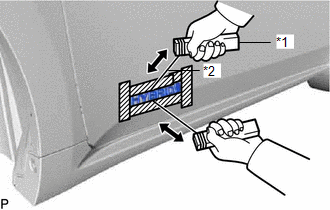

      GTY609465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Wooden Block
      *2 Piano Wire
      Protective Tape
    2. Insert a piano wire between the vehicle body and side panel emblem.
    3. Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.
    4. Pull the piano wire and cut the double-sided tape that holds the side panel emblem to the vehicle body.
      NOTE:
      • If reusing the side panel emblem, take care not to damage the side panel emblem.
      • Be careful not to damage the vehicle body.
    5. Remove the side panel emblem.

      HINT:

      Use the same procedure for the RH side and LH side.
