Removal [10/2014 - ]: Procedure

  1. REMOVE FRONT PILLAR UPPER COVER SUB-ASSEMBLY
    1. Disengage the claw and clip, and remove the front pillar upper cover sub-assembly.

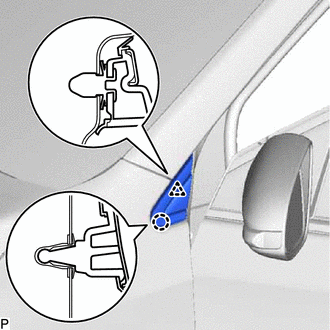

      GTY382427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the clip and gasket from the front pillar upper cover sub-assembly.
  2. REMOVE FRONT FENDER OUTSIDE MOULDING
    1. Disengage the 4 guides and remove the front fender outside moulding as shown in the illustration.

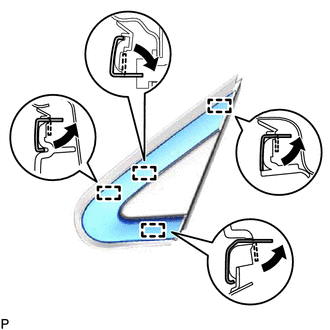

      GTY368928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
