Components [10/2015 - ]: Illustration

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

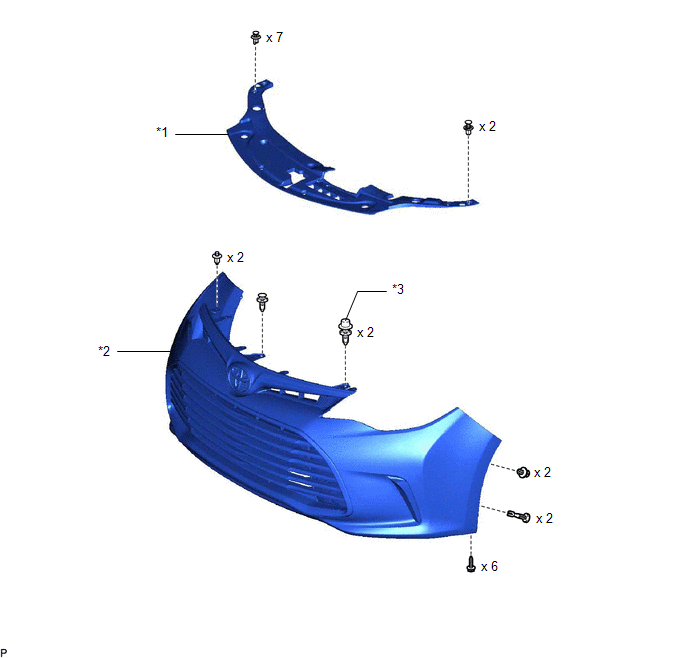

*1	COOL AIR INTAKE DUCT SEAL	*2	FRONT BUMPER ASSEMBLY
*3	HOOD CENTER CUSHION	-	-

Fig 1: Front Bumper Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

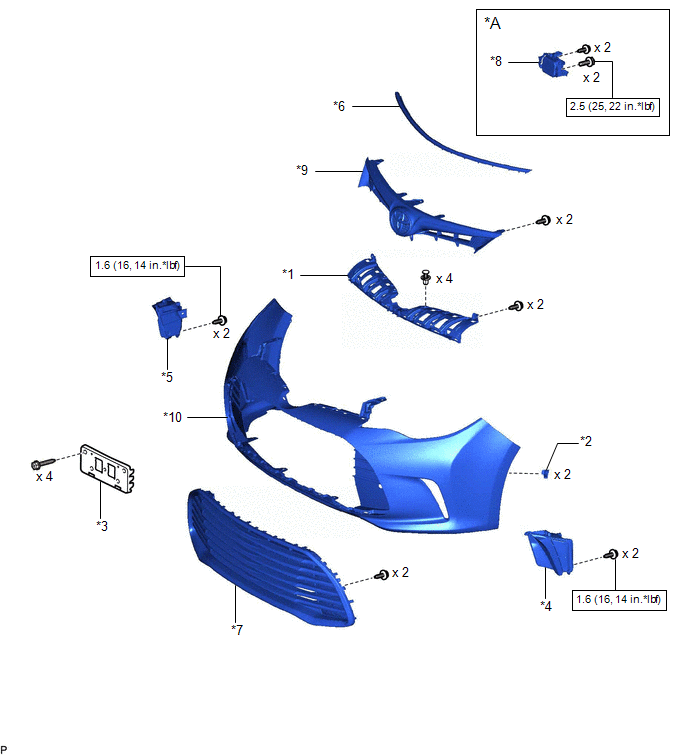

Callout	Description	Callout	Description
*A	w/ Toyota Safety Sense P	-	-
*1	FRONT BUMPER SUPPORT	*2	FRONT FENDER LINER RETAINER
*3	FRONT LICENSE PLATE BRACKET SUB-ASSEMBLY	*4	FRONT TURN SIGNAL LIGHT ASSEMBLY LH
*5	FRONT TURN SIGNAL LIGHT ASSEMBLY RH	*6	HOOD TO RADIATOR GRILLE SEAL
*7	LOWER NO. 1 RADIATOR GRILLE	*8	MILLIMETER WAVE RADAR SENSOR ASSEMBLY
*9	RADIATOR GRILLE SUB-ASSEMBLY	*10	FRONT BUMPER COVER
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

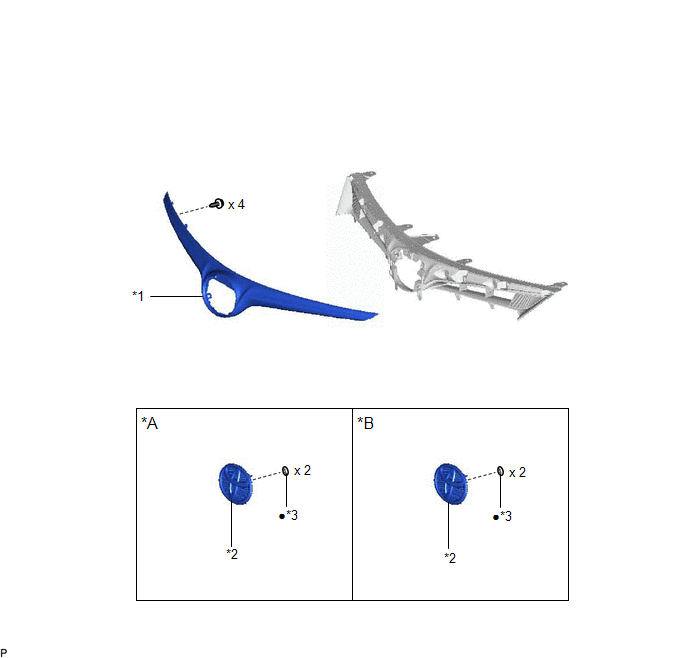

*A	w/o Toyota Safety Sense P	*B	w/ Toyota Safety Sense P
*1	RADIATOR GRILLE	*2	RADIATOR GRILLE (OR FRONT PANEL) EMBLEM
*3	SPRING NUT	-	-
•	Non-reusable part	-	-

Fig 1: Front Bumper Replacement Components With Torque Specifications (3 Of 3)

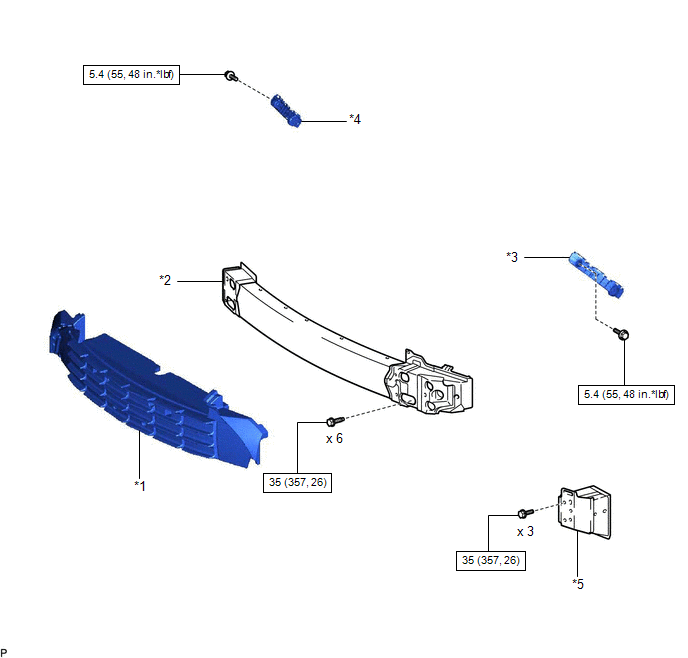

Callout	Description	Callout	Description
*1	FRONT BUMPER ENERGY ABSORBER	*2	FRONT BUMPER REINFORCEMENT
*3	NO. 2 FRONT BUMPER STAY LH	*4	NO. 2 FRONT BUMPER STAY RH
*5	NO. 2 FRONT BUMPER SUPPORT SPACER SUB-ASSEMBLY	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	-	-
