Components [10/2014 - 10/2015]: Illustration

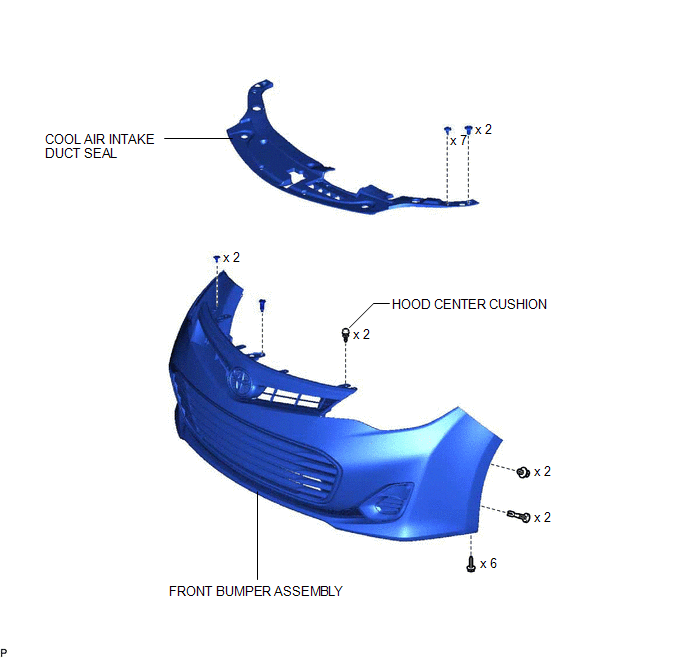

GTY583897Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

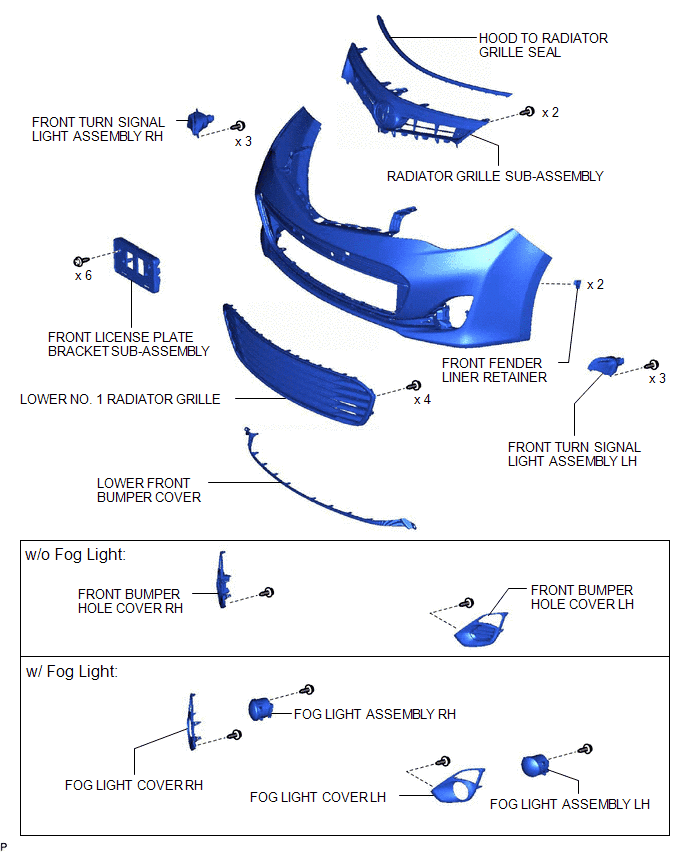

GTY594849Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

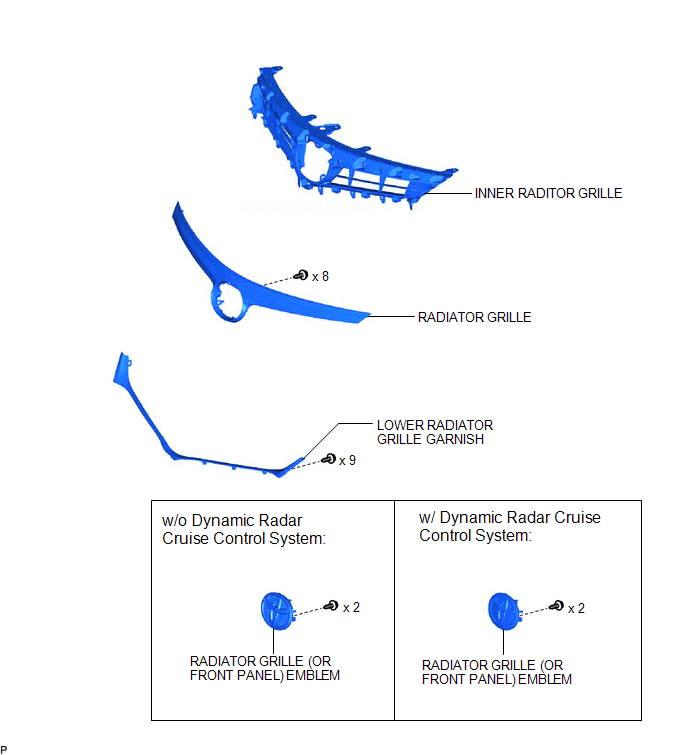

GTY540592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

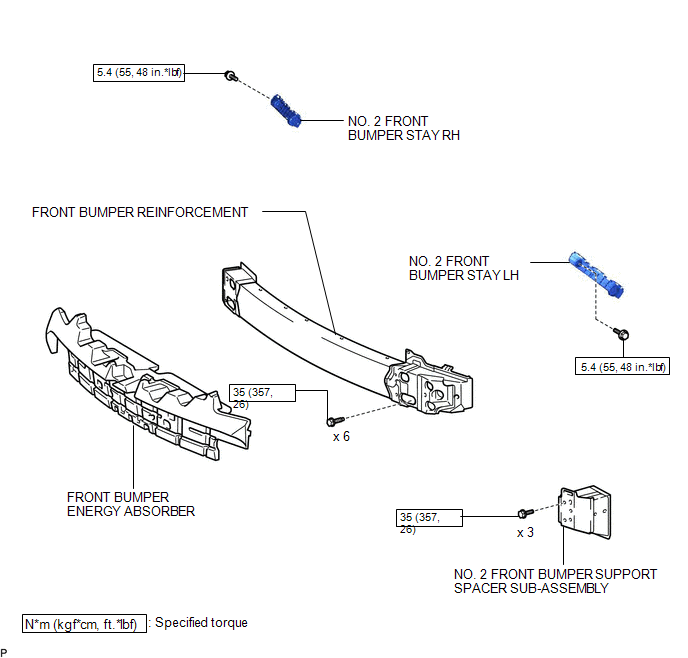

Fig 1: Front Bumper Replacement Components With Torque Specifications (1 Of 3)
GTY481090Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
