Fuel Lid Opener System (Inspection) (Hybrid)
>>
Fuel Lid Opener System
>>
Parts Location [10/2014 - ]
>>
Illustration

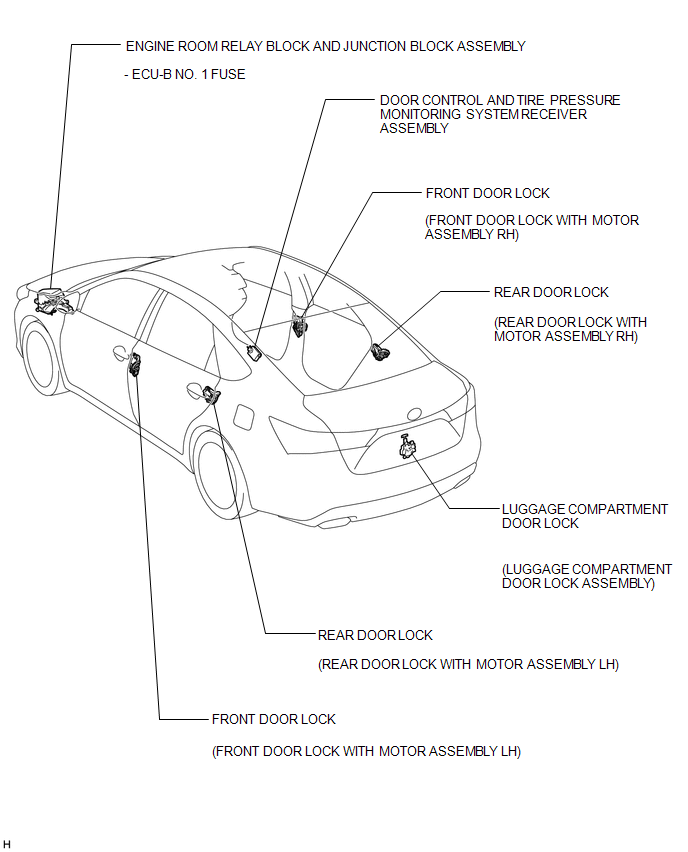

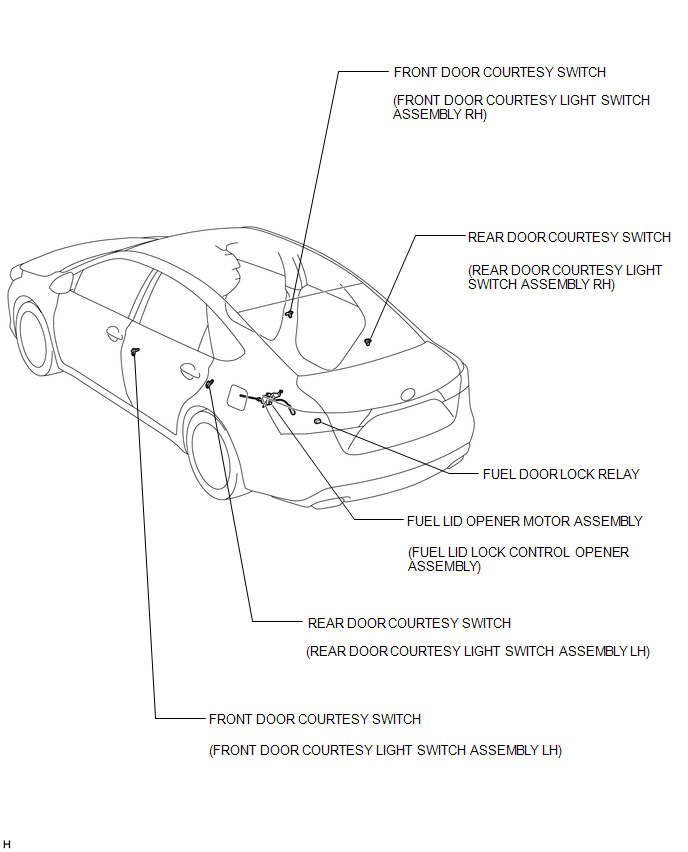

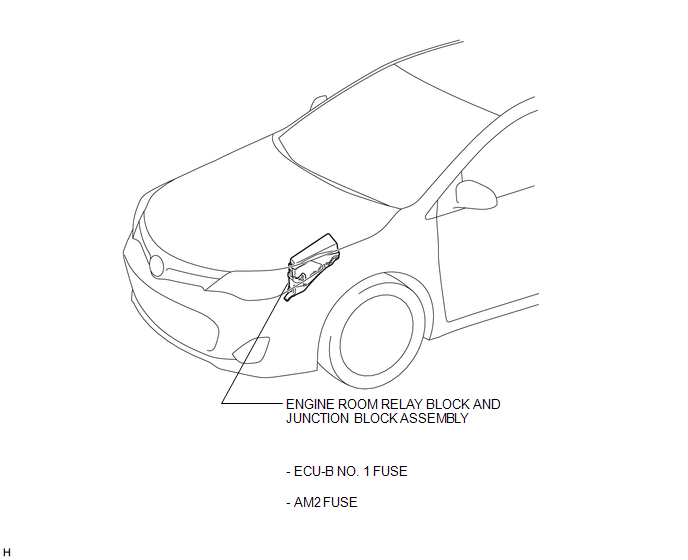

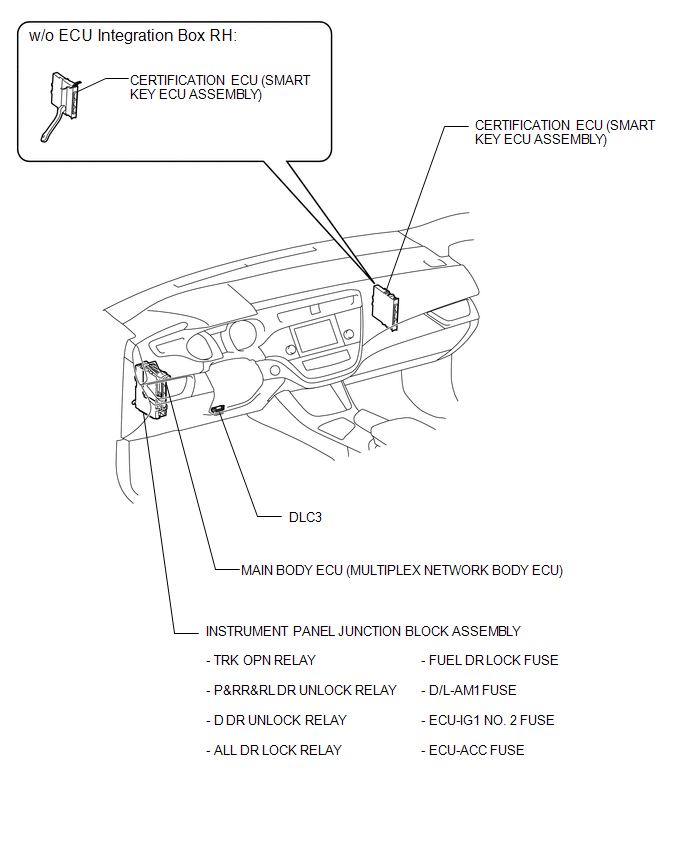

Parts Location [10/2014 - ]: Illustration
Courtesy of
Courtesy of
Courtesy of
Courtesy of
Courtesy of
Courtesy of
Courtesy of
Courtesy of
