Components [10/2014 - ]: Illustration

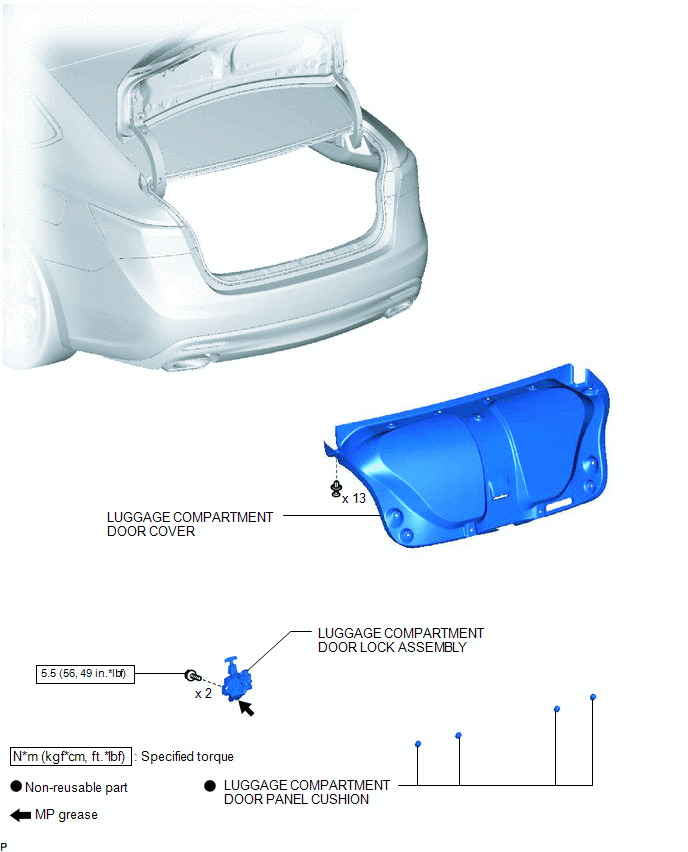

Fig 1: Luggage Compartment Door Replacement Components With Torque Specifications (1 Of 2)
GTY569591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

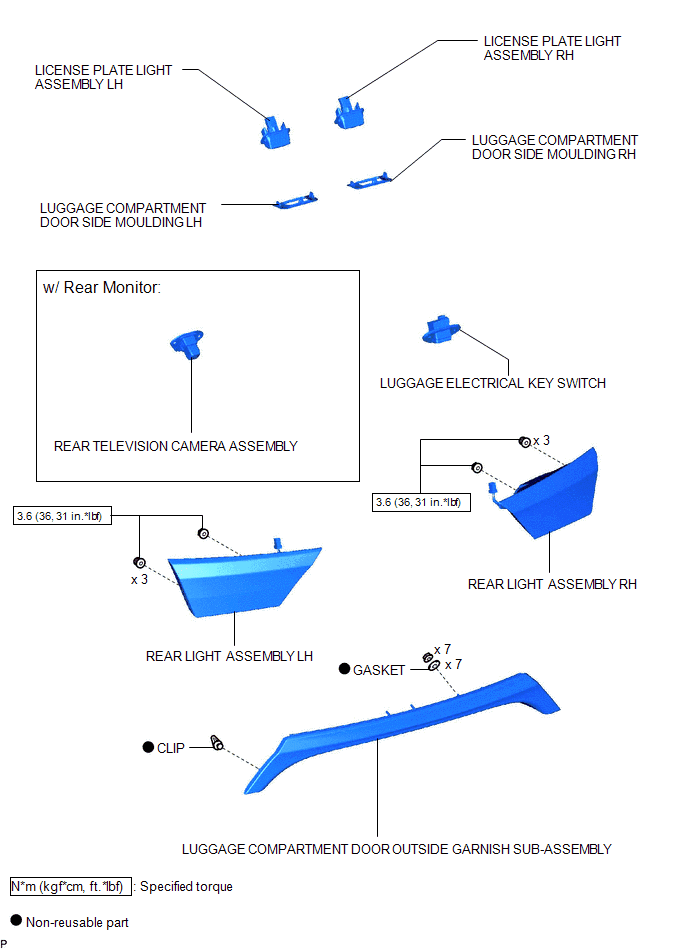

Fig 1: Luggage Compartment Door Replacement Components With Torque Specifications (2 Of 2)
GTY540721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
