Inspection [10/2014 - ]: Procedure

  1. INSPECT LUGGAGE COMPARTMENT DOOR OPENING SWITCH ASSEMBLY
    1. Check the resistance.

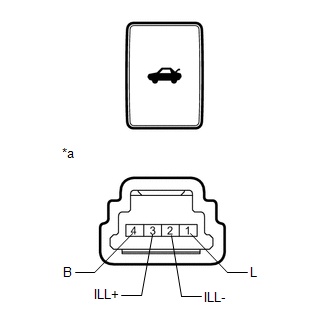

      GTY577724Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        4 (B) - 1 (L) Switch off 10 kΩ or higher
        Switch on Below 1 Ω

        If the result is not as specified, replace the luggage door opening switch assembly.

    2. Inspect the illumination.
      1. Apply auxiliary battery voltage to the luggage door opening switch assembly connector, and check that the luggage door opening switch assembly LED illuminates.

        OK

        Measurement Condition Specified Condition
        Auxiliary battery positive (+) → Terminal 3 (ILL+)
        Auxiliary battery negative (-) → Terminal 2 (ILL-)        		 LED illuminates

        If the result is not as specified, replace the luggage door opening switch assembly.

        TEXT IN ILLUSTRATION

        *a Component without harness connected
        (Luggage Door Opening Switch Assembly)
