Components [10/2014 - ]: Illustration

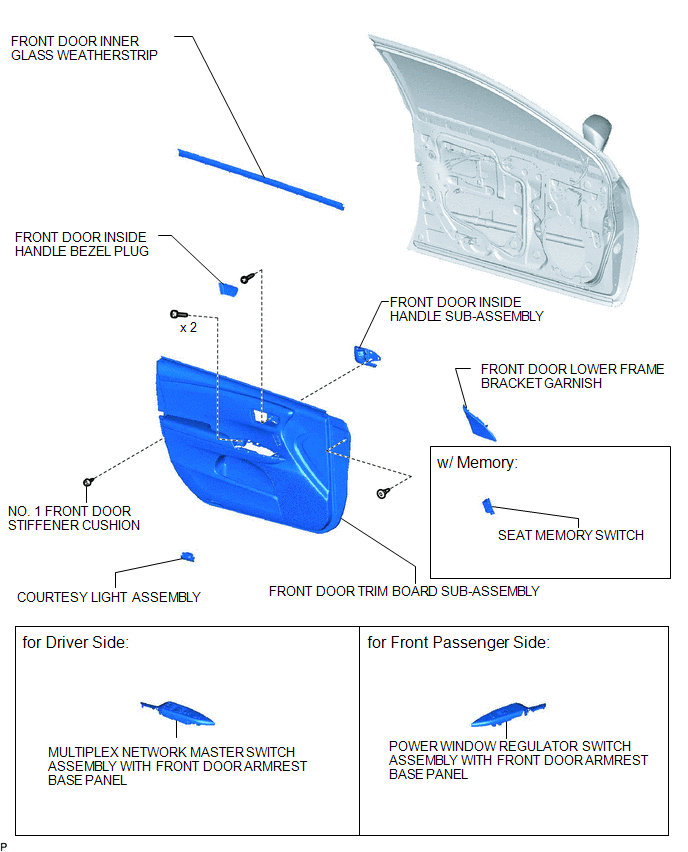

GTY544559Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


GTY377930Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Front Door Replacement Components With Torque Specifications (1 Of 3)

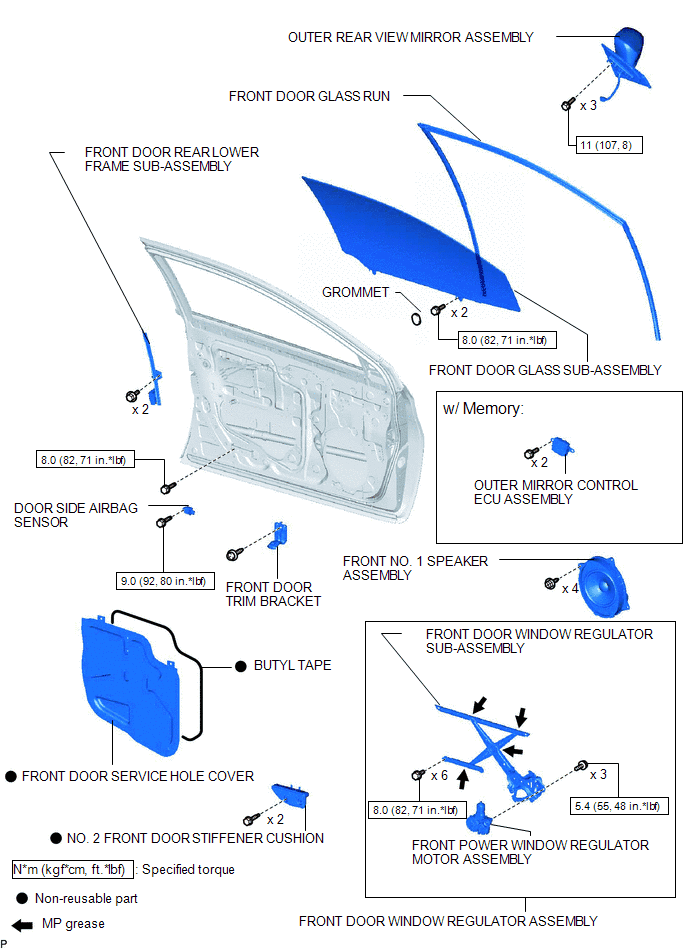

GTY550851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Front Door Replacement Components With Torque Specifications (2 Of 3)

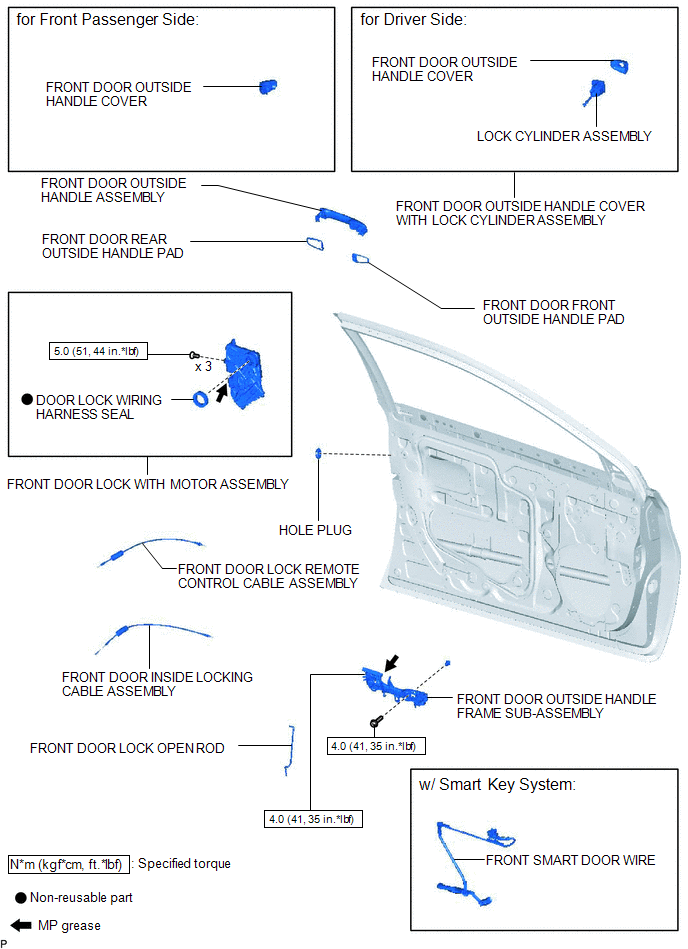

GTY561708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Front Door Replacement Components With Torque Specifications (3 Of 3)

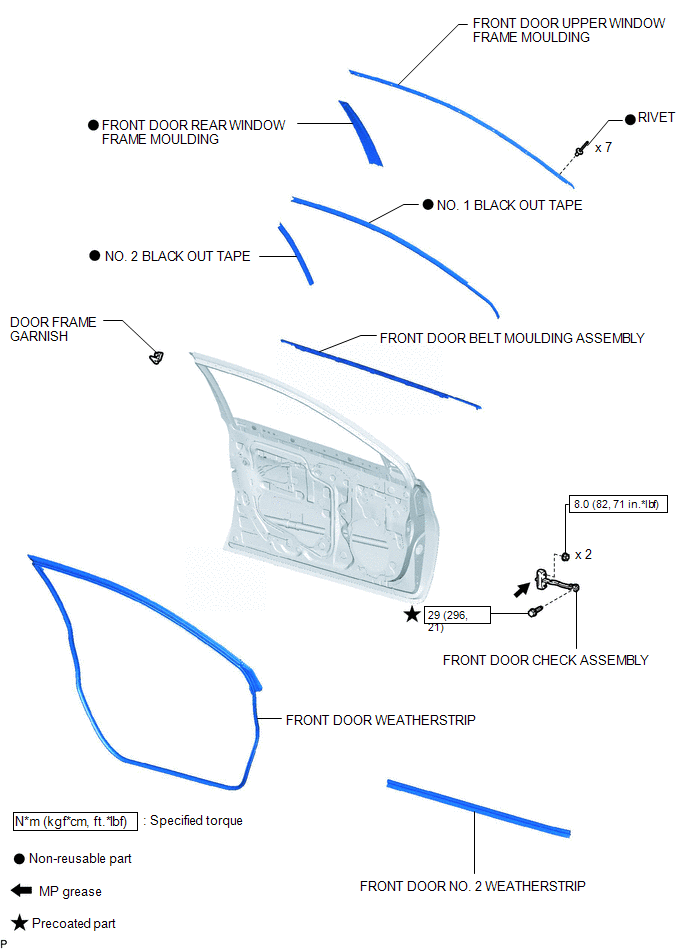

GTY559064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
