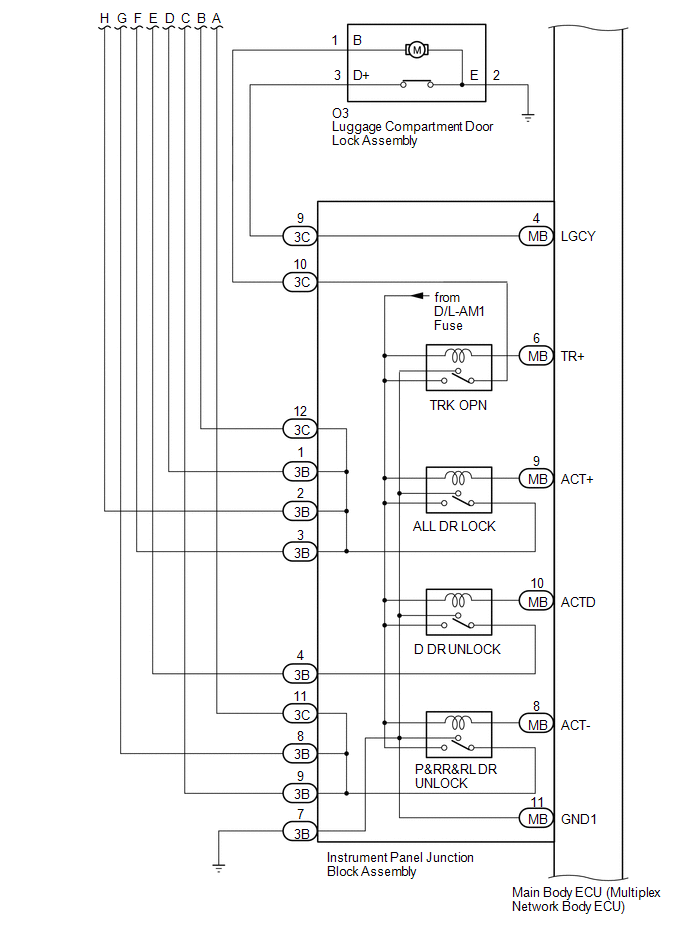

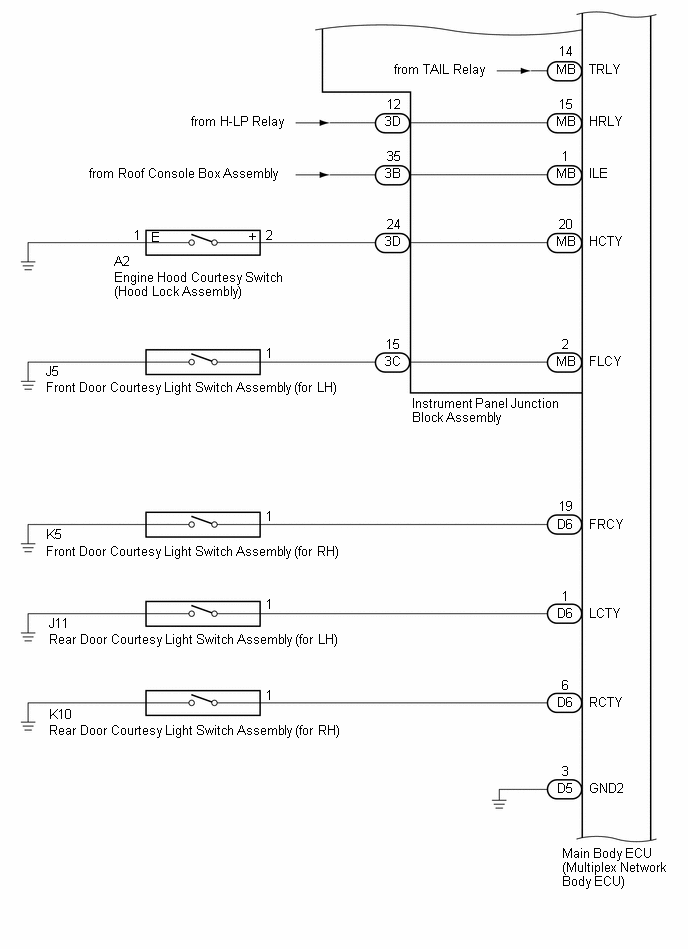

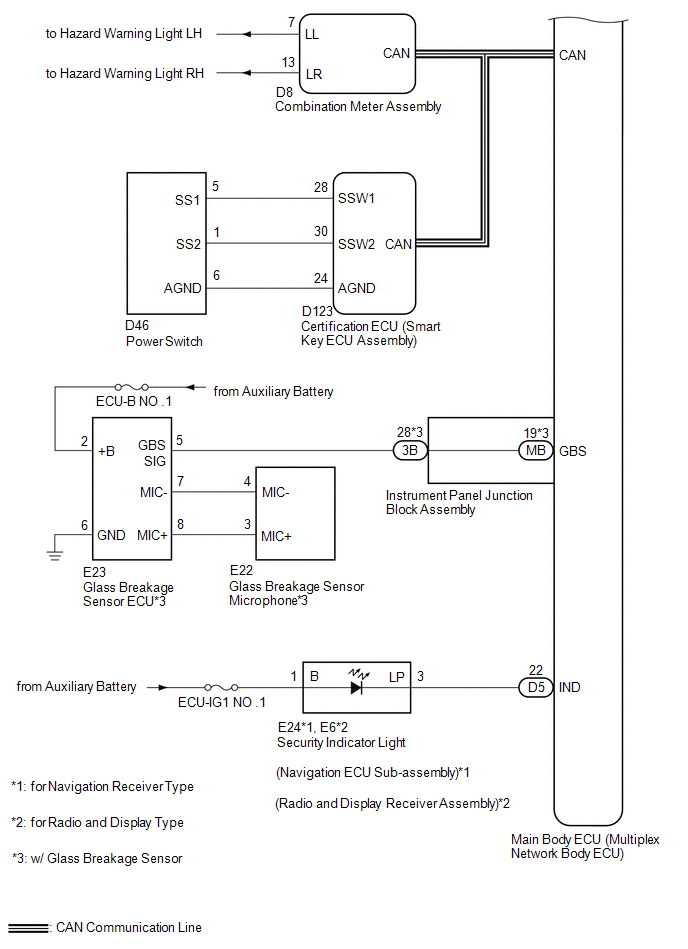

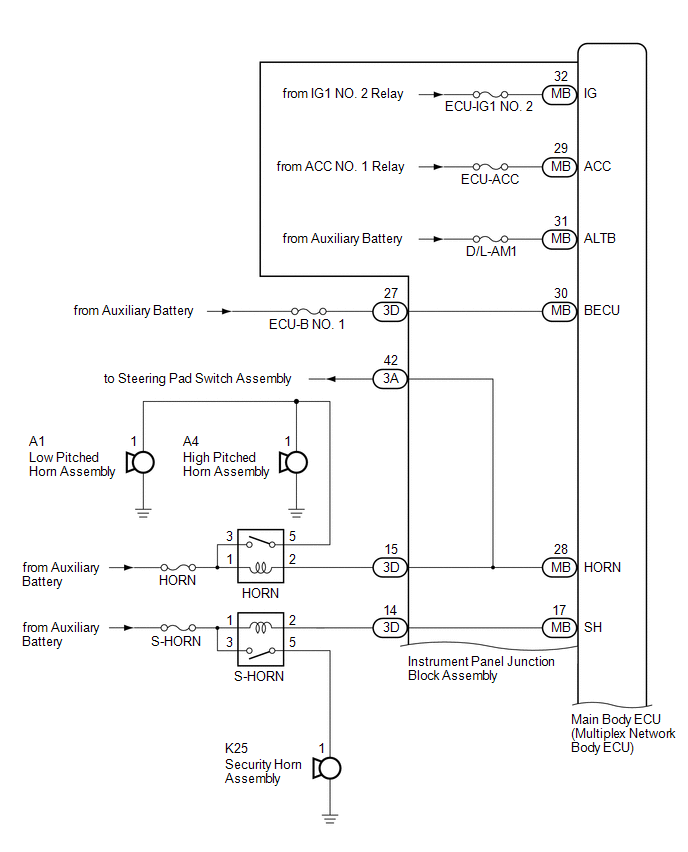

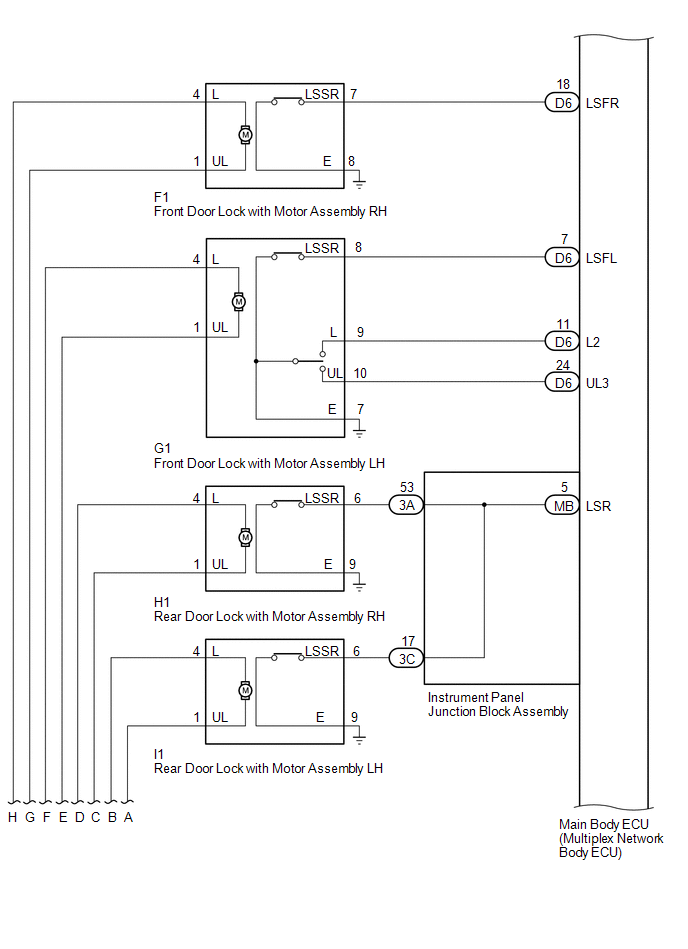

Home >> Toyota >> 2015 >> Avalon Hybrid Limited >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Theft Deterrent System - Diagnostics & Circuit Tests - (Hybrid) >> Theft Deterrent System >> System Diagram [10/2015 - ] >> System Diagram [10/2015 - ]
