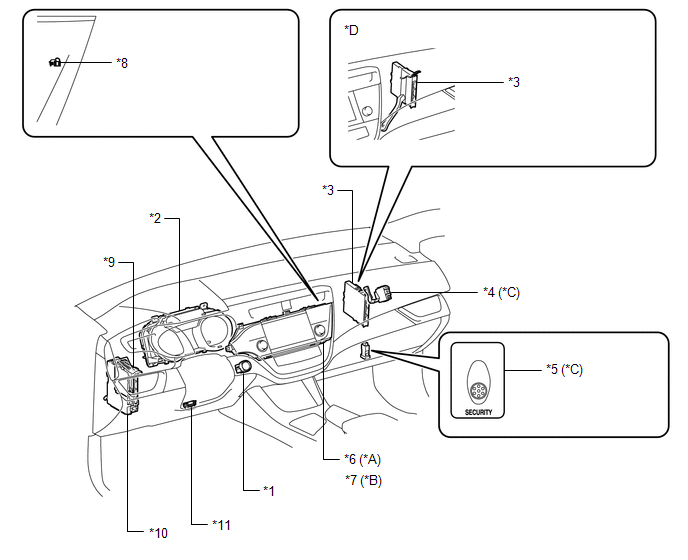

Parts Location [10/2015 - ]: Illustration
| *A | for Navigation Receiver Type | *B | for Radio and Display Type |
| *C | w/ Glass Breakage Sensor | *D | w/o ECU Integration Box RH |
| *1 | POWER SWITCH | *2 | COMBINATION METER ASSEMBLY |
| *3 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *4 | GLASS BREAKAGE SENSOR ECU |
| *5 | GLASS BREAKAGE SENSOR MICROPHONE | *6 | NAVIGATION ECU SUB-ASSEMBLY |
| *7 | RADIO AND DISPLAY RECEIVER ASSEMBLY | *8 | SECURITY INDICATOR LIGHT |
| *9 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *10 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - TRK OPN RELAY - ALL DR LOCK RELAY - D DR UNLOCK RELAY - P&RR&RL DR UNLOCK RELAY - ECU-IG1 NO. 2 FUSE - ECU-ACC FUSE - D/L-AM1 FUSE |
| *11 | DLC3 | - | - |
